H4 Model

Perform compressor oil return operation. Refer to PROCEDURE .
Turn the A/C switch to OFF and stop the engine.
Using the refrigerant recovery system, discharge refrigerant. Refer to PROCEDURE .
Disconnect the ground cable from battery.
Remove the V-belts. Refer to REMOVAL .
Remove the bolts and remove the V-belt cover bracket. Refer to REMOVAL .
Remove the bolt and remove the low-pressure hose and high-pressure hose.

Fig 1: Locating Low-Pressure Hose And High-Pressure Hose Bolt
Courtesy of SUBARU OF AMERICA, INC.
Move the alternator harness to the right.
1. Remove the nut, washer and each connector.
2. Release the lock and move the alternator harness to the right.

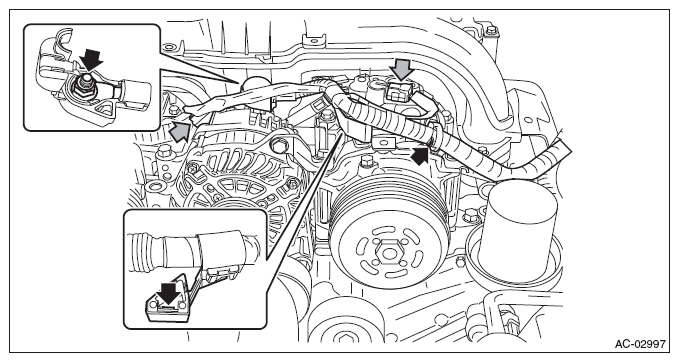

  Fig 2: Locating Connector, Lock And Nut
  Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts, and then remove the generator bracket.

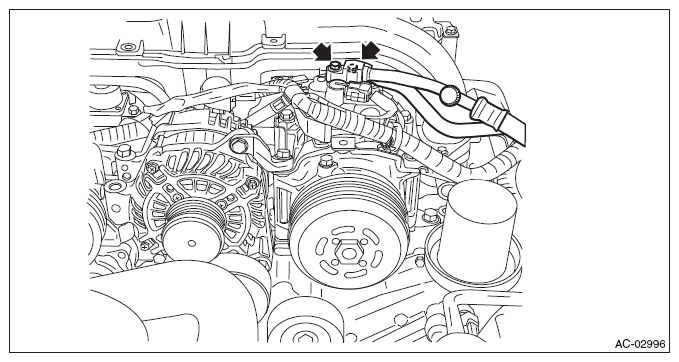

Fig 3: Locating Generator Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and remove the compressor.

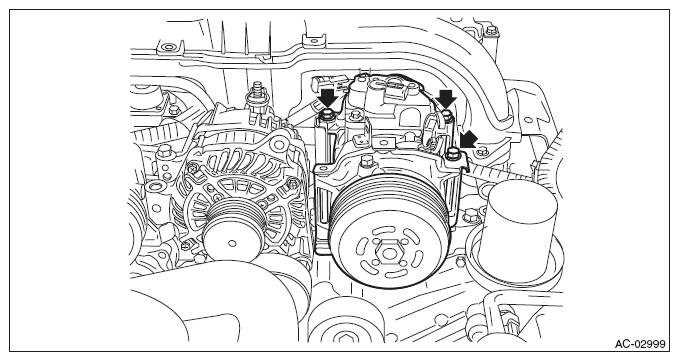

Fig 4: Locating Compressor Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
