Driver's Seat

  1. Remove the instrument panel lower cover. Refer to REMOVAL .
  2. Remove the bolts, and remove the knee guard panel.
    Fig 1: Locating Knee Guard Panel Bolts
    G08348746Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the body integrated unit.
    CAUTION: Be careful to keep water and other foreign materials away from body integrated unit.
    1. Remove the harness clip and connector.
    2. Remove the bolts, and remove the body integrated unit.
      Fig 2: Locating Body Integrated Unit Bolts And Clips
      G06653942Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air mix door actuator.
    1. Disconnect the connector.
    2. Remove the screw, and remove the air mix door actuator.

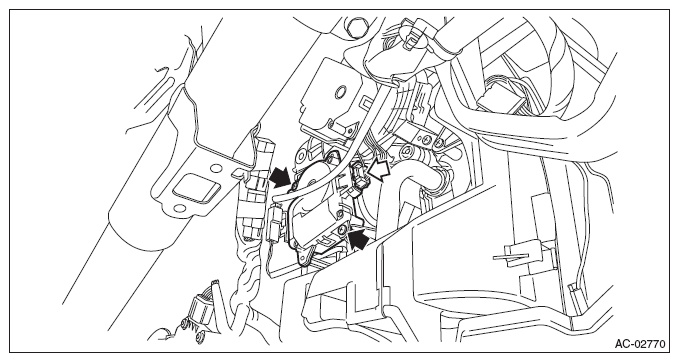

      Fig 3: Disconnecting Air Mix Door Actuator Connector
      G08348755Courtesy of SUBARU OF AMERICA, INC.
