Clutch Pedal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake boot assembly. Refer to REMOVAL .
  3. Drain the clutch fluid from the reservoir tank.
  4. Disconnect the clutch pipe from the connector.

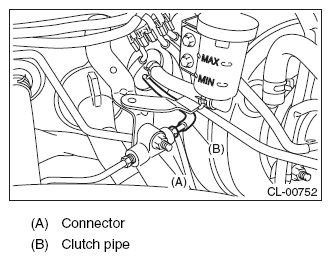

    Fig 1: Identifying Clutch Pipe And Connector
    G08582224Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the reservoir tank hose from the reservoir tank.

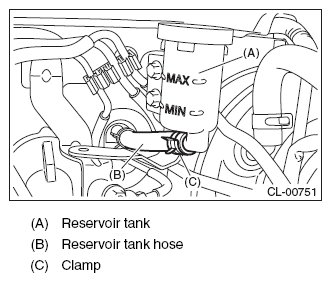

    Fig 2: Identifying Reservoir Tank, Reservoir Tank Hose And Clamp
    G08582225Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the instrument panel lower cover. Refer to REMOVAL .
  7. Remove the body integrated unit. Refer to REMOVAL .
  8. Disconnect the connector from the clutch switch.
  9. Disconnect the connector from the brake switch.
  10. Remove the snap pin and clevis pin connecting the operating rod and brake pedal.
  11. Remove the pedal assembly.
    NOTE: Place vinyl, etc. in order not to drop the clutch fluid to the floor carpet.

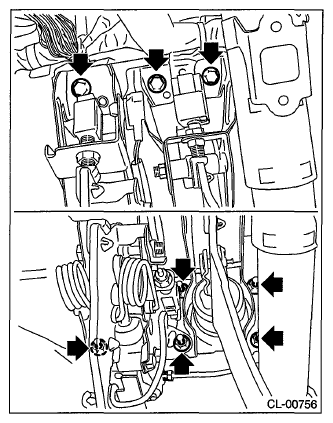

    Fig 3: Locating Pedal Assembly Bolts And Nuts
    G06652555Courtesy of SUBARU OF AMERICA, INC.
