Section 8 (Starting System & Charging System (H4DO)): Starter: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

Fig 2: Identifying Air Intake Boot Clip And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron. (non-turbo model)

Fig 3: Identifying Air Intake Boot And Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. (turbo model) < Refer to REMOVAL , Intercooler. >
Disconnect the connector (B) and terminal (A) from starter.

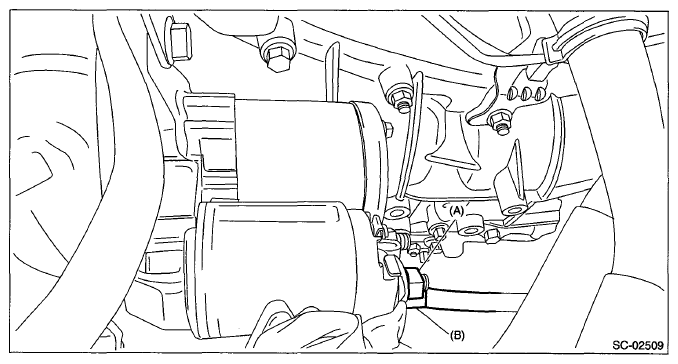

Fig 4: Identifying Starter Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the starter from transmission.
NOTE: For the AT model, a nut is used at (A).

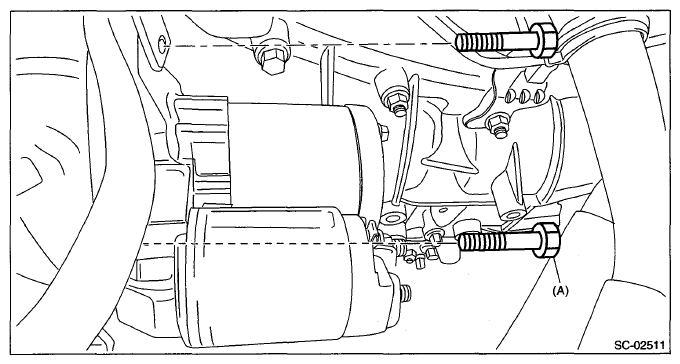

Fig 5: Identifying Starter Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
