Section 9 (Engine Intake System (Induction) And Turbocharger (H4DOTC)): Intercooler: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the collector cover.
Disconnect the air by-pass pipe (A) and vacuum hose (B) from the air by-pass valve.
Loosen the clamp (C) which holds the intake duct to intercooler.

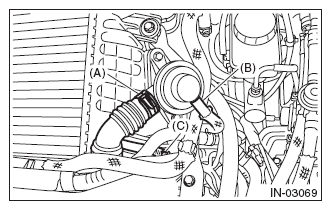

Fig 1: Identifying Air By-Pass Pipe, Vacuum Hose And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the intercooler to the turbocharger.

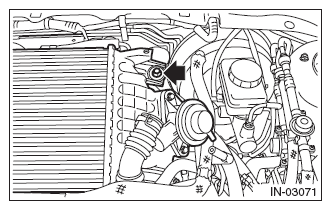

Fig 2: Locating Intercooler To Turbocharger Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the intercooler to the intercooler stay, and remove the intercooler.

Fig 3: Locating Intercooler Stay Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the brake booster vacuum hose from the clip (A), and remove the intercooler stay.

Fig 4: Identifying Brake Booster Vacuum Hose Clip
Courtesy of SUBARU OF AMERICA, INC.
