Ambient Sensor: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Air Conditioning System < Refer to appropriate SYSTEM WIRING DIAGRAM. >

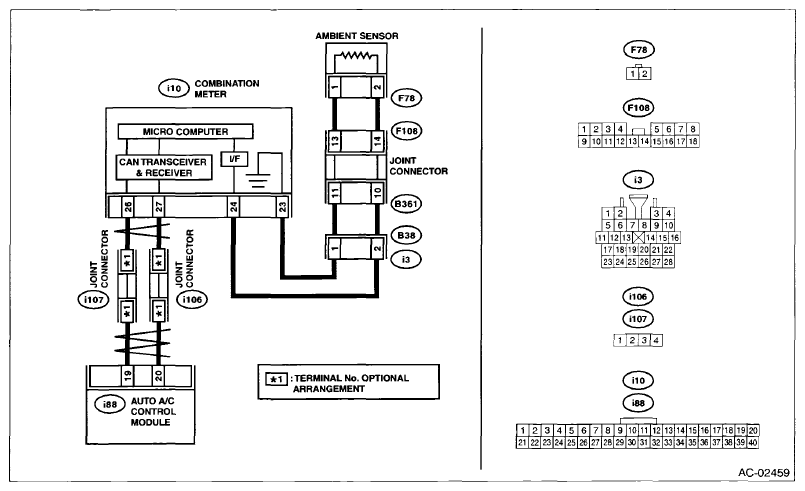

Fig 1: Ambient Sensor - Wiring Diagram (Fan Speed Is Not Switched)
G07680303Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK AMBIENT SENSOR.
Perform the inspection of ambient sensor unit. < Refer to INSPECTION , Ambient Sensor (Auto A/C Model). >		 Is the ambient sensor operating properly? Go to step 2  . Replace the ambient sensor. < Refer to REMOVAL , Ambient Sensor (Auto A/C Model). >
2 CHECK INPUT SIGNAL FOR AMBIENT SENSOR.
  1. Turn the ignition to ON.
  2. Measure the voltage between connector (F78) terminals.

    Connector & terminal

    (F78) No. 2 (+) - No. 1 (-):

 Is the voltage approx. 5 V? Go to step 6  . Go to step 3  .
3 CHECK COMBINATION METER OUTPUT SIGNAL.
  1. Turn the ignition switch to OFF.
  2. Pull out the combination meter.
  3. Disconnect the connector from ambient sensor.
  4. Turn the ignition switch to ON.
  5. Measure the voltage between the combination meter connector terminals.

    Connector & terminal

    (i10) No. 24 (+) - No. 23 (-):

 Is the voltage approx. 5 V? Go to step 4  . Replace the combination meter. < Refer to REMOVAL , Combination Meter. >
4 CHECK HARNESS CONNECTOR BETWEEN COMBINATION METER AND AMBIENT SENSOR.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from the combination meter.
  3. Measure the resistance of harness between combination meter and ambient sensor.

    Connector & terminal

    (F78) No. 1 - (i10) No. 23:

 Is the resistance less than 1 Ω? Go to step 5  . Repair the open circuit of the harness between the combination meter and ambient sensor.
5 CHECK HARNESS CONNECTOR BETWEEN COMBINATION METER AND AMBIENT SENSOR.
Measure the resistance of harness between combination meter and ambient sensor.
Connector & terminal
(F78) No. 2 - (i10) No. 24: 		 Is the resistance less than 1 Ω? Replace the combination meter. < Refer to REMOVAL , Combination Meter. > Repair the open circuit of the harness between the combination meter and ambient sensor.
6 CHECK HARNESS CONNECTOR BETWEEN COMBINATION METER AND AUTO A/C CONTROL MODULE.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from the combination meter.
  3. Disconnect the auto A/C control module connector.
  4. Measure the resistance of harness between the combination meter and auto A/C control module.

    Connector & terminal

    (i88) No. 19 - (i10) No. 26:

 Is the resistance less than 1 Ω? Go to step 7  . Repair the open circuit in the harness between the combination meter and auto A/C control module. < Refer to LAN SYSTEM , CAUTION, General Description. >
7 CHECK HARNESS CONNECTOR BETWEEN COMBINATION METER AND AUTO A/C CONTROL MODULE.
Measure the resistance of harness between the combination meter and auto A/C control module.
Connector & terminal
(i88) No. 20 - (i10) No. 27: 		 Is the resistance less than 1 Ω? Go to step 8  . Repair the open circuit in the harness between the combination meter and auto A/C control module. < Refer to LAN SYSTEM , CAUTION, General Description. >
8 CHECK FOR POOR CONTACT.
Check poor contact of auto A/C control module connector.		 Is there poor contact of connector? Repair the connector. Replace the auto A/C control module. < Refer to REMOVAL , Control Unit (Auto A/C Model). >
