DTC 61 Vehicle Speed Is Abnormal: Wiring Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Tire Pressure Monitoring System < Refer to Tire Pressure Monitoring System Wiring Diagram. >

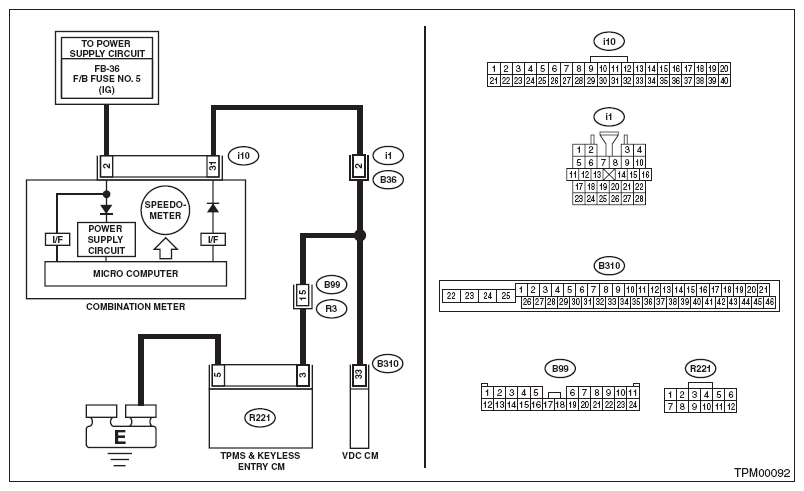

Fig 1: Tire Pressure Monitoring System - Wiring Diagram (Vehicle Speed Signal Was Not Input To Module)

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK TPMS & KEYLESS ENTRY CONTROL MODULE. Connect an oscilloscope to the terminal No. 3 of the TPMS & keyless entry control module connector (R221). Connector & terminal (R221) No. 3 (+) - Chassis ground (-): Lift up the vehicle and then drive the vehicle at 40 km/h (25 MPH) and check the vehicle speed signal at that time.	Is the vehicle speed being input?	Replace the TPMS & keyless entry control module. < Refer to TPMS & KEYLESS ENTRY CONTROL MODULE , REMOVAL, Tire Pressure Monitoring System. >	Go to step 2 .
2 CHECK HARNESS. Disconnect the combination meter connector (i10). Connect the tester to the TPMS & keyless entry control module connector (R221) and combination meter connector (i10), and measure the resistance. Connector & terminal (R221) No. 3 - (i10) No. 31:	Is the resistance less than 0.5 Ω?	Check the combination meter. < Refer to INSPECTION , Combination Meter System. >	Repair or replace the open circuit of the harness.
