Secondary Air Combination Valve LH

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
    Fig 1: Disconnecting/Connecting Battery Ground Cable
    G06336085Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intercooler. < Refer to REMOVAL , Intercooler. >
  4. Disconnect the connector from the secondary air combination valve LH.
  5. Disconnect the air duct A.
  6. Remove the secondary air pipe LH.
  7. Remove the secondary air combination valve LH.

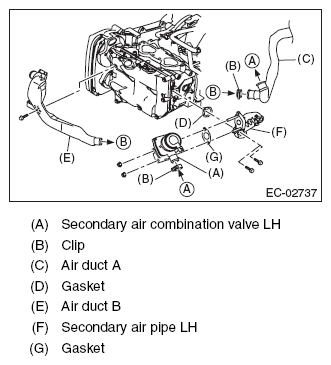

    Fig 2: Identifying Secondary Air Combination Valve Components (LH)
    G08571027Courtesy of SUBARU OF AMERICA, INC.
