Transmission Case: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the manual transmission assembly from the vehicle. < Refer to REMOVAL , Manual Transmission Assembly. >
Remove the clutch release lever. < Refer to REMOVAL , Release Bearing and Lever. >
Remove the transfer case together with the extension case assembly. < Refer to REMOVAL , Transfer Case and Extension Case Assembly. >
Remove the bearing mounting bolt.

Fig 1: Removing Bearing Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the main shaft rear plate.

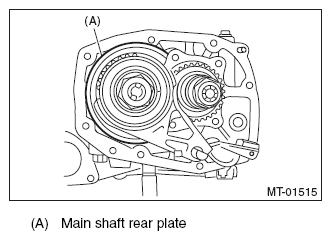

Fig 2: Removing Main Shaft Rear Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the coupling bolts and nuts, and separate the transmission case into the right and left cases.

Fig 3: Identifying Coupling Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion shaft assembly from the left side of the transmission case.
NOTE: Use a hammer handle, etc. to remove if too tight.

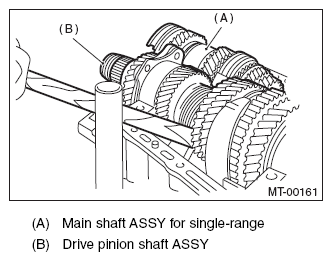

Fig 4: Removing Drive Pinion Shaft Assembly From Left Side Of Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the main shaft assembly for single-range.
Remove the front differential assembly.

Fig 5: Removing/Installing Front Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the differential side retainers and bearing outer races on the left and right side. < Refer to REMOVAL , Front Differential Assembly. >
NOTE: Do not confuse the right and left roller bearing outer races.
Remove the reverse idler gear. < Refer to REMOVAL , Shifter Fork and Rod. >
Remove the shifter fork and rod. < Refer to REMOVAL , Shifter Fork and Rod. >
