Transfer Case and Extension Case Assembly: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the manual transmission assembly from the vehicle. < Refer to REMOVAL , Manual Transmission Assembly. >
Remove the back-up light switch and the neutral position switch. < Refer to REMOVAL , Switches and Harness. >
Remove the transfer case together with the extension case assembly.

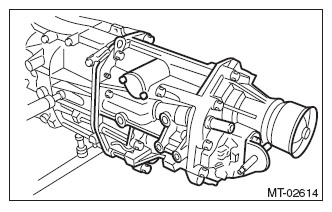

Fig 1: Identifying Transfer Case And Extension Case Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the shifter arm.
Remove the extension case assembly.

Fig 2: Identifying Extension Case Assembly
Courtesy of SUBARU OF AMERICA, INC.
