Transfer Driven Gear: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from the vehicle. < Refer to REMOVAL , Manual Transmission Assembly. >
  2. Remove the back-up light switch & neutral position switch. < Refer to REMOVAL , Switches and Harness. >
  3. Remove the transfer case together with the extension case assembly. < Refer to REMOVAL , Transfer Case and Extension Case Assembly. >
  4. Remove the extension case assembly.
  5. Remove the transfer driven gear.
    Fig 1: Identifying Transfer Driven Gear
    G05003002Courtesy of SUBARU OF AMERICA, INC.
  6. Remove bearing outer races from the extension case and transfer case.

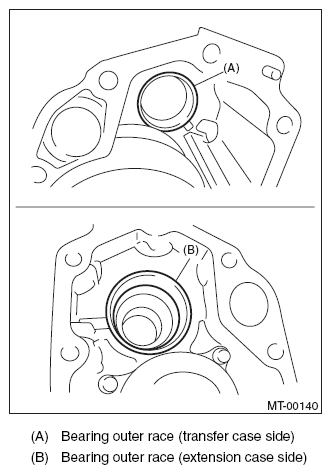

    Fig 2: Identifying Bearing Outer Race (Transfer Case Side) And Bearing Outer Race (Extension Case Side)
    G08571653Courtesy of SUBARU OF AMERICA, INC.
