Refrigerant Recovery Procedure: Procedure

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • During operation, be sure to wear protective goggles and protective gloves.
  • Connect the refrigerant recovery system with the manifold gauge set to discharge the refrigerant from the A/C system and recycle the gas.
  • When recycling the discharged refrigerant, keep service cans on hand. Because the recovery rate with the recovery system is approx. 90%, service cans are necessary to charge the refrigerant.
  • Follow the detailed operation procedure described in the operation manual attached to the refrigerant recovery system.
  1. Perform compressor oil return operation. < Refer to PROCEDURE , Compressor Oil. >
  2. Stop the engine.
  3. Make sure the valves on low/high pressure sides of manifold gauge set are fully closed.

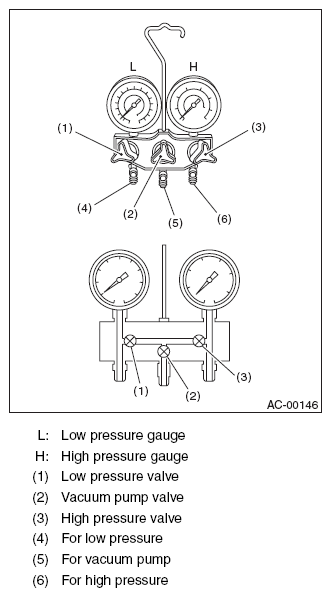

    Fig 1: Identifying Manifold Gauge Set
    G08565897Courtesy of SUBARU OF AMERICA, INC.
  4. Install the low/high pressure hoses to the service ports on the low/high pressure sides of the vehicle respectively.

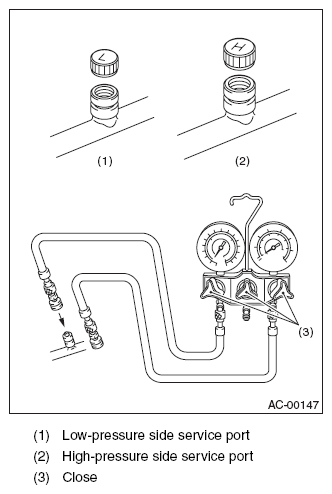

    Fig 2: Identifying High And Low-Pressure Side Service Ports
    G08565898Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the center hose to the refrigerant recovery system.
  6. Follow the operation manual to activate the refrigerant recovery system.
