Section 23 (HVAC System (Heater, Ventilator And A/C)): Evaporator: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Using the refrigerant recovery system, discharge refrigerant. < Refer to PROCEDURE , Refrigerant Recovery Procedure. >
Remove the bolt and detach the hose and pipe from the expansion valve.
CAUTION: Seal the disconnected hose and pipe with a plug or vinyl tape to prevent foreign matter from entering.
Remove the instrument panel lower. < Refer to INSTRUMENT PANEL LOWER , REMOVAL, Center Console. >

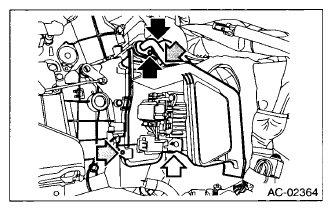

Fig 1: Locating Expansion Valve Hose And Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the blower motor unit. < Refer to REMOVAL , Blower Motor Unit Assembly. >
Remove the screw and remove the evaporator pipe cover.

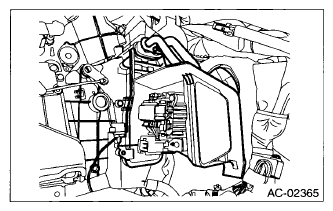

Fig 2: Locating Evaporator Pipe Cover Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the evaporator pipe mounting bolt, and evaporator cover mounting screw and clip.

Fig 3: Locating Evaporator Pipe Mounting Bolt, Evaporator Cover Mounting Screw And Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the evaporator cover and evaporator pipe.
CAUTION: Since the evaporator cover and the evaporator pipe cannot be removed by itself, remove them as a unit.

Fig 4: Identifying Evaporator Cover And Pipe
Courtesy of SUBARU OF AMERICA, INC.
1. Disengage the evaporator and the pipe.
2. Remove the evaporator pipe with the evaporator cover.
Remove the evaporator.

Fig 5: Identifying Evaporator
Courtesy of SUBARU OF AMERICA, INC.
Remove the evaporator sensor from the evaporator.
