4. Instrument Panel Lower

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console box. < Refer to REMOVAL , Console Box. >
  2. Remove the center panel. < Refer to CENTER PANEL , REMOVAL, Center Console. >
  3. Remove the console front panel. < Refer to CONSOLE FRONT PANEL , REMOVAL, Center Console. >
  4. Remove the ornament panel RH. < Refer to ORNAMENT PANEL , REMOVAL, Center Console. >
  5. Remove the instrument panel lower cover. < Refer to REMOVAL , Instrument Panel Lower Cover. >
  6. Remove the glove box lid and glove box lower cover. < Refer to REMOVAL , Glove Box. >
  7. Remove the screws and nuts to remove the instrument panel lower.
    NOTE: The screw indicated by the white arrow is installed on the reverse face.

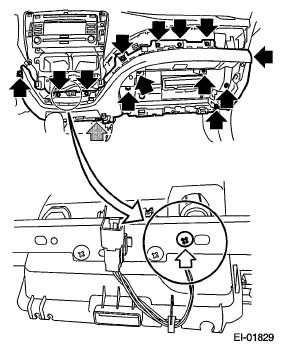

    Fig 1: Locating Instrument Panel Lower Screws And Nuts
    G05663816Courtesy of SUBARU OF AMERICA, INC.
