Non-Turbo Model

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Perform compressor oil return operation. < Refer to PROCEDURE , Compressor Oil. >
Turn the A/C switch to OFF and stop the engine.
Using the refrigerant recovery system, discharge refrigerant. < Refer to PROCEDURE , Refrigerant Recovery Procedure. >
Disconnect the ground cable from battery.
Remove the V-belts. < Refer to REMOVAL , V-belt. >

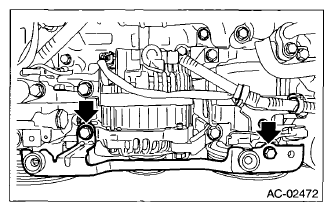

Remove the bolts and remove the V-belt cover bracket.

Fig 1: Locating V-Belt Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

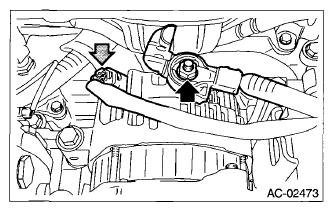

Disconnect the connector and terminal from generator.

Fig 2: Locating Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.

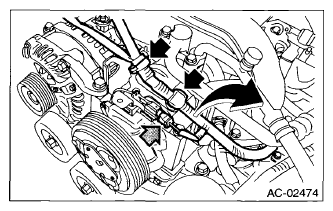

Disconnect the compressor connector and clip, and move the generator harness to the right.

Fig 3: Moving Generator Harness To Right
Courtesy of SUBARU OF AMERICA, INC.

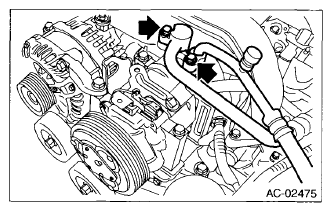

Remove the bolt and remove the low-pressure hose and high-pressure hose.
CAUTION: Seal the disconnected hose with a plug or vinyl tape to prevent foreign matter from entering.

Fig 4: Locating Low And High Pressure Hose Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

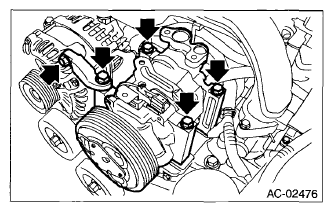

Loosen the generator bracket bolts.
Remove the bolts and remove the compressor.

Fig 5: Locating Generator Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
