Radiator Sub Fan and Fan Motor: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct (rear). < Refer to REMOVAL , Air Intake Duct. >
Disconnect the connector from the sub fan motor assembly.

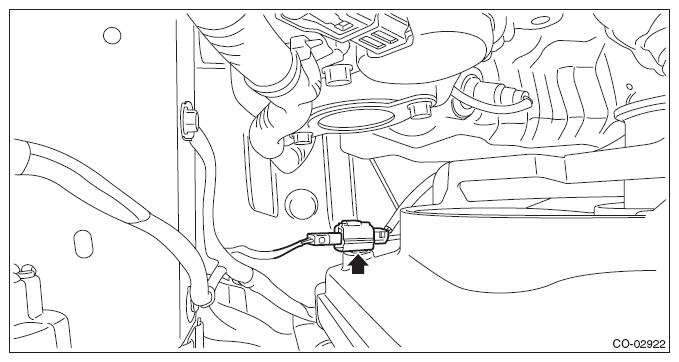

Fig 2: Locating Sub Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold the radiator sub fan shroud onto the radiator.

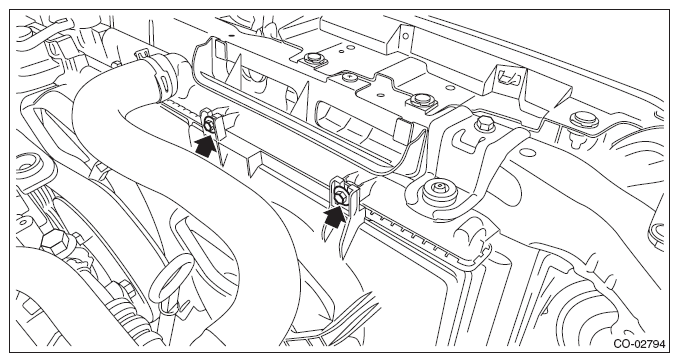

Fig 3: Locating Radiator Sub Fan Shroud Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator sub fan and fan motor from vehicle.
