Air Intake Duct: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clip which secures air intake duct (rear), and remove the air intake duct (rear).

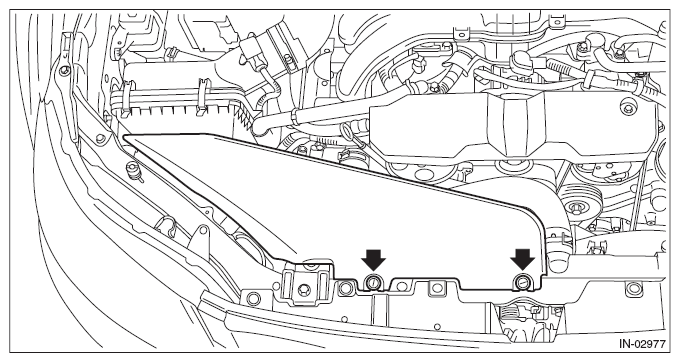

Fig 1: Locating Air Intake Duct Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip (A) and four claws and then remove the air intake duct (front).

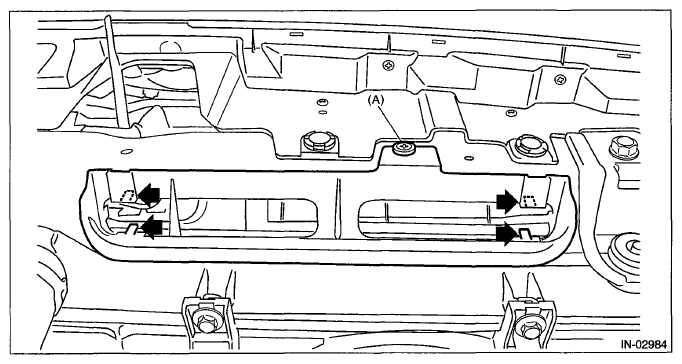

Fig 2: Locating Air Intake Duct Claws
Courtesy of SUBARU OF AMERICA, INC.
