Section 11 (Engine Cooling System (H4DOTC)): Thermostat: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle.
Remove the under cover.< Refer to REMOVAL , Front Under Cover. >
Drain engine coolant.< Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Disconnect the radiator outlet hose from thermostat cover.

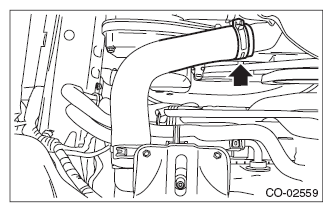

Fig 1: Locating Radiator Outlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the thermostat cover, and then remove the gasket and thermostat.

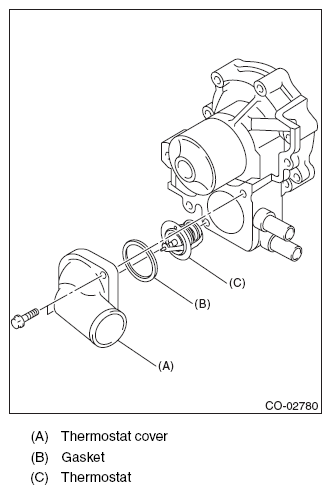

Fig 2: Identifying Thermostat Cover, Gasket And Thermostat
Courtesy of SUBARU OF AMERICA, INC.
