Coolant Filler Tank: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The coolant filler tank is pressurized when the engine and radiator are hot. Wait until engine and radiator cool down before working on the coolant filler tank.

Remove the collector cover.
Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant.< Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Disconnect the engine coolant hoses from coolant filler tank.
Remove the bolts which secure the coolant filler tank.

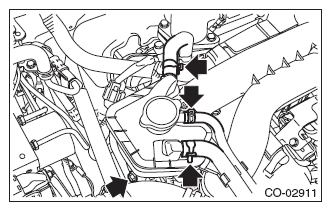

Fig 1: Locating Coolant Filler Tank Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose which connects the under side of coolant filler tank, and remove the coolant filler tank.

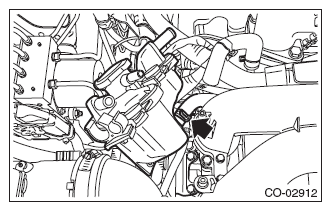

Fig 2: Locating Engine Coolant Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
