Cylinder Head And Camshaft

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

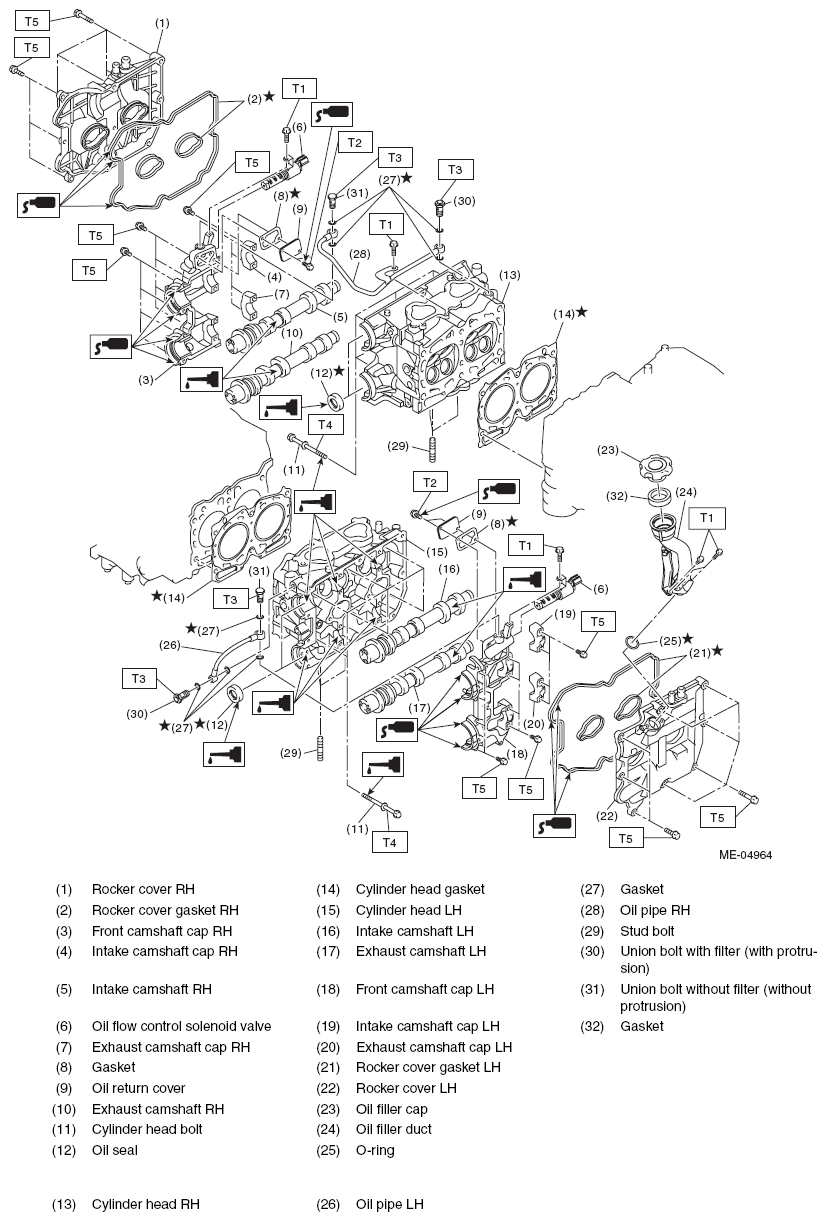

Fig 1: Cylinder Head, Camshaft And Related Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 9 (0.9, 6.6)

T3: 29 (3.0, 21.4)

T4: < Refer to INSTALLATION , Cylinder Head. >

T5: < Refer to INSTALLATION , Camshaft. >
