Cylinder Head RH

  1. Remove the engine from the vehicle. Refer to REMOVAL .
  2. Remove the intake manifold. Refer to REMOVAL .
  3. Remove the tumble generator valve assembly RH. Refer to REMOVAL .
  4. Remove the chain cover. Refer to REMOVAL .
  5. Remove the rocker cover RH. Refer to ROCKER COVER RH .
  6. Remove the cam carrier RH. Refer to CAM CARRIER RH .
  7. Remove the EGR pipe assembly from the water pipe assembly and the cylinder block RH.

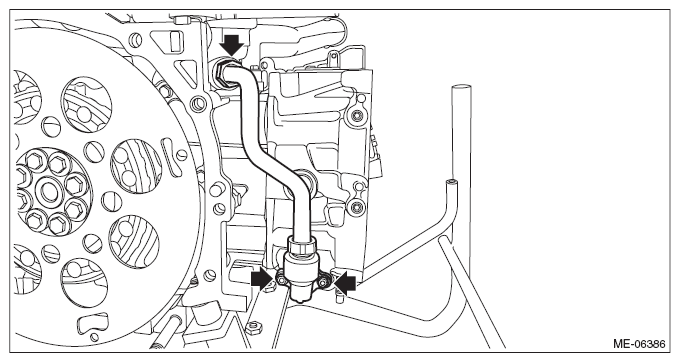

    Fig 1: Locating EGR Pipe Assembly Mounting Bolts
    G08547972Courtesy of SUBARU OF AMERICA, INC.
  8. Loosen the bolts holding the cylinder head RH equally, a little at a time in numerical sequence as shown in the figure, and while leaving the cylinder head bolts (1) and (4) engaged by three or four threads, remove the other cylinder head bolts.
    NOTE: Leaving the cylinder head bolts (1) and (4) engaged by three or four threads prevents the cylinder head RH from falling.

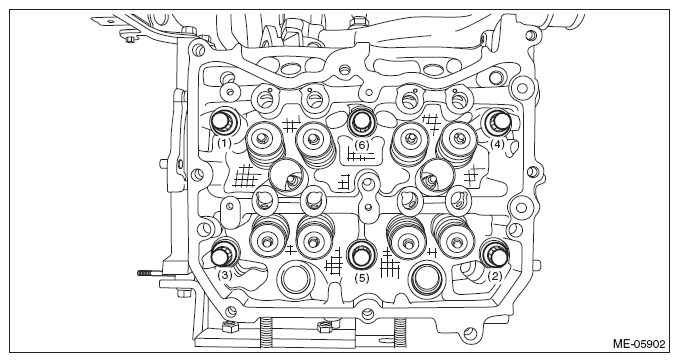

    Fig 2: Identifying Loosening Sequence Of Cylinder Head RH Mounting Bolts
    G08317085Courtesy of SUBARU OF AMERICA, INC.
  9. While tapping the cylinder head RH with a plastic hammer, separate it from cylinder block RH.
  10. Remove the bolts (1) and (4) to remove cylinder head RH.
  11. Remove the cylinder head gasket RH.
    CAUTION: Be careful not to scratch the mating surface of cylinder head and cylinder block.
  12. Remove the liquid gasket from cylinder head RH and cam carrier RH.
