Oil Pan Upper

Remove the engine from the vehicle. Refer to REMOVAL .
Remove the water pump. Refer to REMOVAL .
Remove the thermostat cover. Refer to REMOVAL .
Remove the water pipe assembly. Refer to WATER PUMP .
Remove the oil pan. Refer to OIL PAN .
Remove clip (A) from the oil pan upper, and remove the oil level switch.

Fig 1: Identifying Oil Pan Upper Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure oil pan upper to cylinder block, and remove the oil pan upper.

Fig 2: Locating Oil Pan Upper To Cylinder Block Securing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the baffle plate from the oil pan upper.
Remove the oil strainer from the oil pan upper.
Remove stud bolts from the oil pan upper.

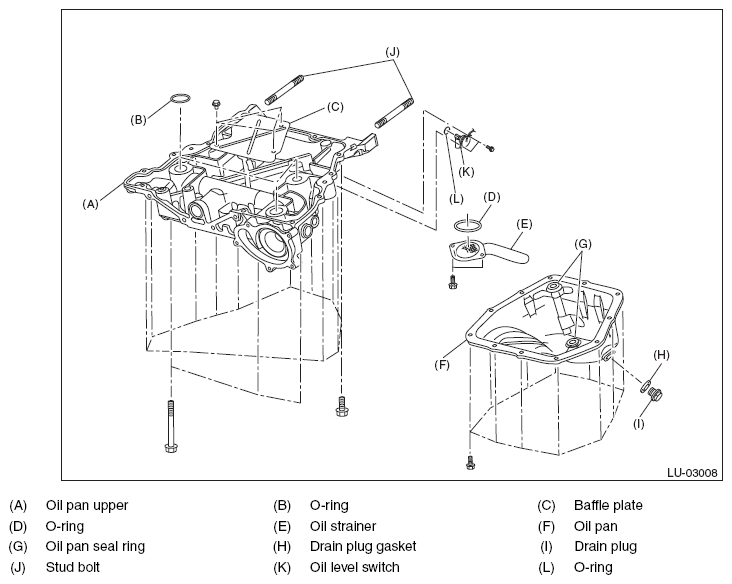

Fig 3: Identifying Oil Pan And Strainer Components With Stud Bolts
Courtesy of SUBARU OF AMERICA, INC.
