Front Axle: Disassembly

Remove bolt from the front axle housing, and remove the front hub unit bearing and disc brake cover.

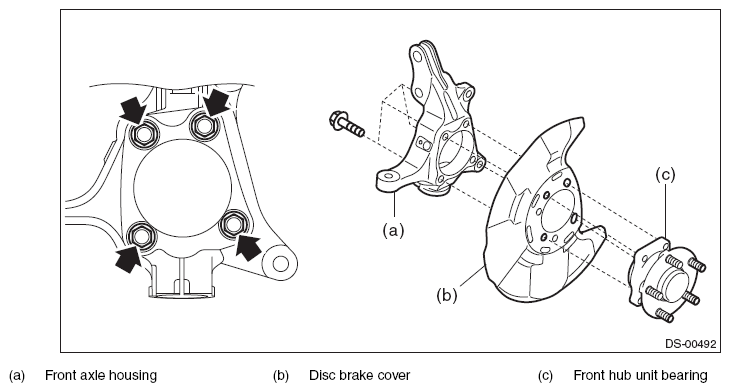

Fig 1: Identifying Front Axle Housing, Disc Brake Cover And Front Hub Unit Bearing
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
- Do not get closer the tool which charged magnetism to magnetic encoder.
- Be careful not to damage the magnetic encoder.

  Fig 2: Identifying Magnetic Encoder And Front Hub Unit Bearing
  Courtesy of SUBARU OF AMERICA, INC.
Disassemble the front hub unit bearing. Refer to DISASSEMBLY .
