Front Hood Opener

  1. Remove the opener lever.
    1. Remove the cable.
    2. Remove the nut, and detach the opener lever.

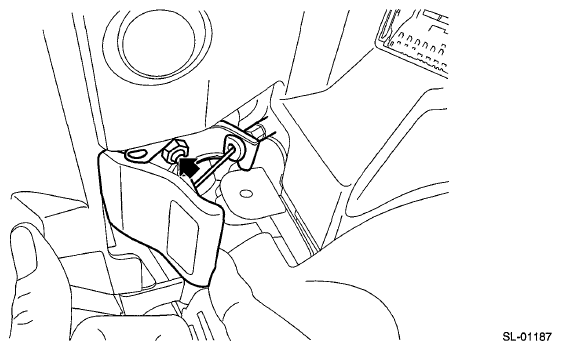

      Fig 1: Detaching Opener Lever
      G06653920Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the following parts and remove the cable clip and cable.
    • Front hood lock ASSY: Refer to REMOVAL .
    • Instrument panel lower cover: Refer to REMOVAL .

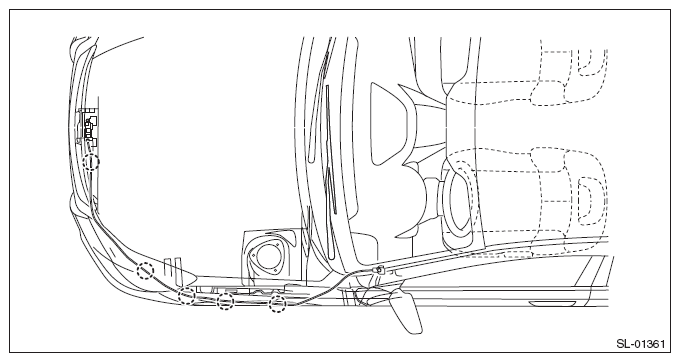

      Fig 2: Identifying Cable Clip And Cable
      G08584967Courtesy of SUBARU OF AMERICA, INC.
