Rear Gate Latch and Actuator Assembly: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the rear gate trim. Refer to REMOVAL .
  3. Remove the rear gate latch & actuator assembly.
    1. Remove the bolts and pull out the rear gate latch & actuator assembly to the vehicle front.
    2. Disconnect the connectors, and then remove the rear gate latch & actuator assembly.

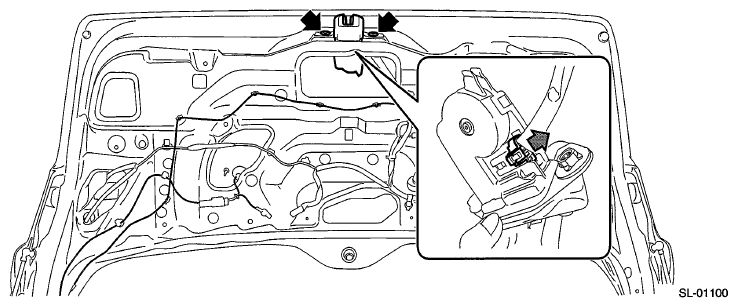

      Fig 1: Disconnecting Rear Gate Latch & Actuator Assembly Connector
      G06653911Courtesy of SUBARU OF AMERICA, INC.
