Washer Tank and Motor: Installation

Install each part in the reverse order of removal.
CAUTION: Install the bumper face so that the under cover front end (b) comes inside the front bumper face (a).

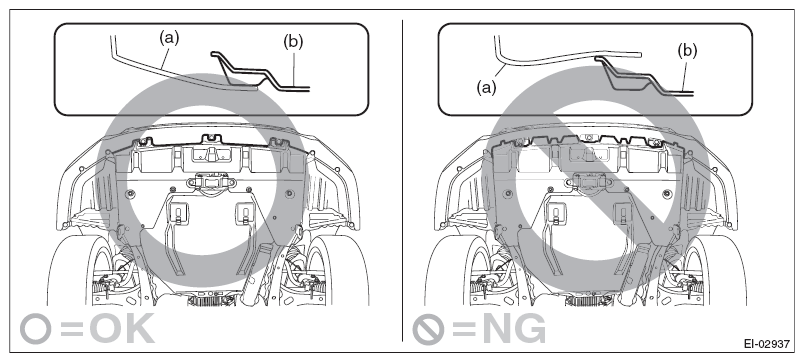

Fig 1: Identifying Front Bumper Face And Under Cover Installation Position (Proper And Improper Position)
Courtesy of SUBARU OF AMERICA, INC.
Add new washer fluid.
Tightening torque:

6 N.m (0.61 kgf-m, 4.4 ft-lb)
Adjust the fog light beam. (Model with fog light) < Refer to FOG LIGHT AIMING , ADJUSTMENT, Front Fog Light Assembly. >
