Fog Light Aiming

Before checking the fog light beam level, be sure of the following:
- The area around the fog light has not sustained any accident, damage or other type of deformation.
- Vehicle is parked on a level surface.
- The inflation pressure of tires is correct.
- Vehicle's fuel tank is fully filled.
Bounce the vehicle several times to normalize the suspension.
Make certain that someone is seated in the driver's seat.
Place the vehicle with the front end facing to the measurement panel.

Fig 1: Identifying Fog Light Center Height
Courtesy of SUBARU OF AMERICA, INC.

h mm (in) at 3 m (10 ft)

40 (1.58)
Adjust the fog light beam.
1. Remove the clips and turn over the front end of front mud guard.

  Fig 2: Locating Front Mud Guard Mounting Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Adjust the beam direction by turning the aiming screw from the bottom of front bumper face.
  - Sedan model

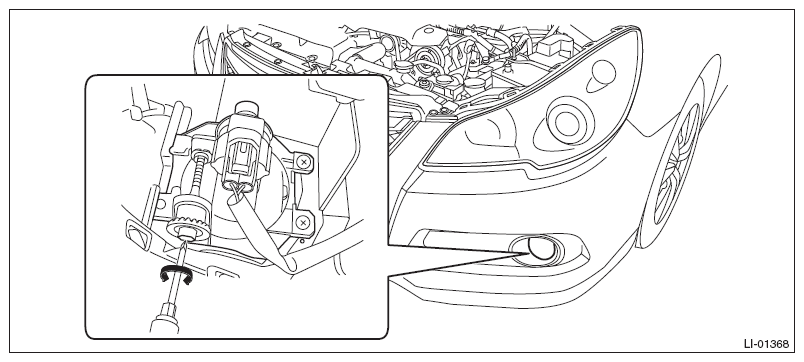

    Fig 3: Turning Aiming Screw Using Tool (Sedan Model)
    Courtesy of SUBARU OF AMERICA, INC.
  - OUTBACK model

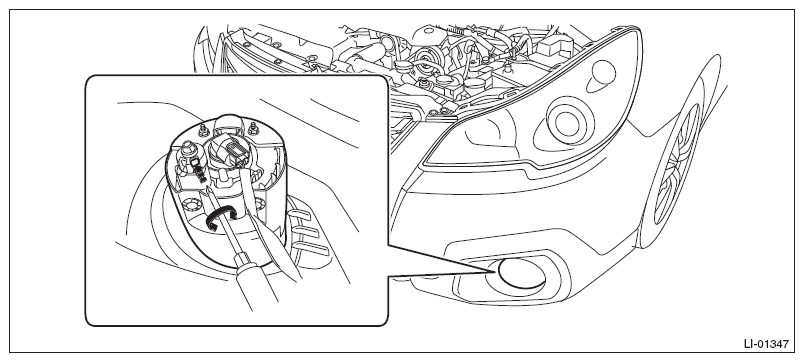

    Fig 4: Turning Aiming Screw Using Tool (Outback Model)
    Courtesy of SUBARU OF AMERICA, INC.
