Outback Model

  1. Disconnect the ground cable from battery.
  2. Remove the rear gate trim. Refer to REMOVAL .
  3. Remove the rear gate garnish. Refer to REMOVAL .
  4. Release the clips and claws, then detach the rear finisher light side cover.

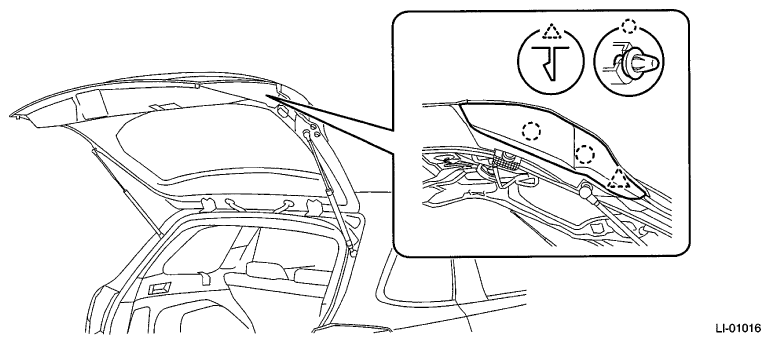

    Fig 1: Identifying Rear Finisher Light Side Cover
    G06653634Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the rear finisher light assembly.
    1. Disconnect the connector.
    2. Remove the nuts and release the pin, then remove the rear finisher light assembly.

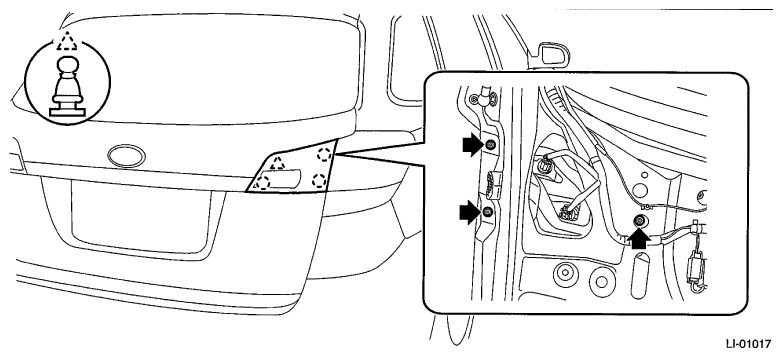

      Fig 2: Locating Rear Finisher Light Assembly Mounting Nuts
      G06653478Courtesy of SUBARU OF AMERICA, INC.
