Sedan Model

  1. Disconnect the ground cable from battery.
  2. Remove the trunk lid trim. Refer to TRUNK LID TRIM .
  3. Remove the trunk lid garnish. Refer to REMOVAL .
  4. Disconnect the connector and remove the bulb socket.

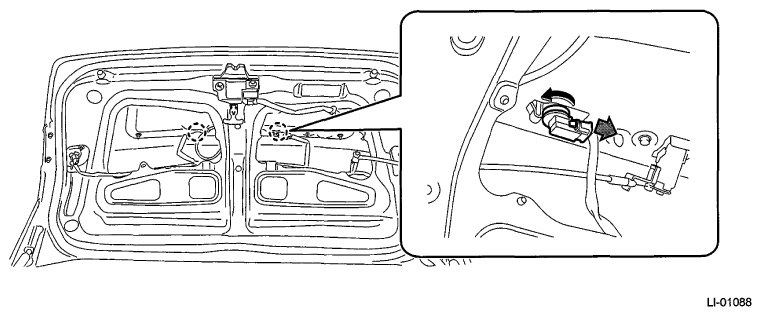

    Fig 1: Removing Bulb Socket
    G06653483Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the license plate light.

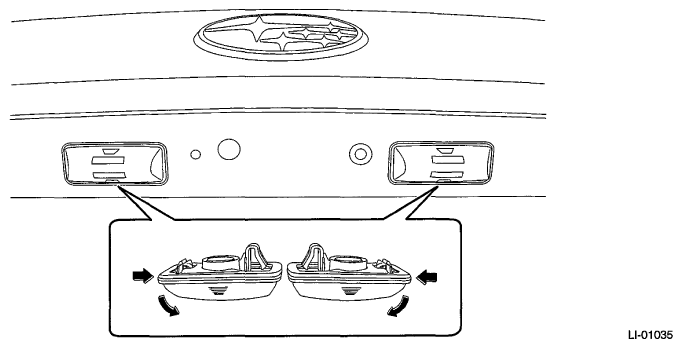

    Fig 2: Removing License Plate Light
    G06653484Courtesy of SUBARU OF AMERICA, INC.
