Home >> Subaru >> 2013 >> Legacy Premium, Automatic CVT Trans >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System >> High-mounted Stop Light >> Removal >> Sedan Model

Sedan Model

  1. Disconnect the ground cable from battery.
  2. Remove the rear shelf trim. Refer to REMOVAL .
  3. Remove the high-mounted stop light.
    1. Disconnect the connector.
    2. Remove the lock washers and remove the high-mounted stop light.

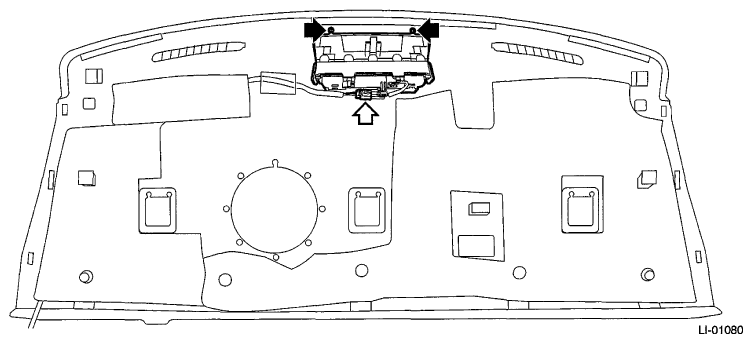

      Fig 1: Locating High-Mounted Stop Light Connector And Lock Washers
      G06653486Courtesy of SUBARU OF AMERICA, INC.
