Rear Shelf Trim: Removal

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.
CAUTION: The airbag system is fitted with a backup power supply. After disconnecting the battery ground cable, the airbag may operate if you do not wait for 60 seconds before starting the service of airbag system.
Remove the rear seat cushion assembly.
1. Pull up the seat cushion and release the hook.
  CAUTION: If the hook is disconnected from the vehicle body, replace the hook with the new part to prevent the decline of the fixed force of the seat.

  Fig 1: Identifying Hook
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 2: Removing Rear Seat Cushion Assembly
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the hook (A) by pushing it back while lifting the front side of the seat cushion, and remove the seat cushion.

  Fig 3: Removing Hook By Pushing It Back
  Courtesy of SUBARU OF AMERICA, INC.
Release the clips and claws, and remove the side sill covers - rear INN on the left and right sides.
CAUTION: Do not pull with excessive force. Doing so may damage the claws of the side sill cover INN.

Fig 4: Identifying Side Sill Cover Sections - Rear INN
Courtesy of SUBARU OF AMERICA, INC.

NOTE: To release the claws of the side sill cover INN, the following steps are recommended.
1. Take out the weather strip from under the side sill cover INN.
2. Turn over the floor mat and release the claw (C-C and D-D) by accessing from behind the side sill cover INN.
Remove the left and right rear quarter trim LWR.
1. Remove the backrest side pad.
  1. Remove the screws.
    Preparation tool:

    Stubby screwdriver
  2. Turn over the bottom end of the backrest side pad in the forward direction so that the claws are released.
  3. Remove the backrest side pad by pulling it up.

    Fig 5: Removing Backrest Side Pad
    Courtesy of SUBARU OF AMERICA, INC.
2. Pull the release lever in the trunk room, and then tilt the backrest forward.

  Fig 6: Tilting Backrest Forward
  Courtesy of SUBARU OF AMERICA, INC.
3. Release the clips of the trunk trim panel assembly - side.
4. Remove the clips, and remove the rear quarter trim LWR.

  Fig 7: Identifying Rear Quarter Trim Clips (LWR)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the left and right rear quarter trim UPR.
1. Remove the lower anchor bolt of the outer belt assembly.

  Fig 8: Locating Lower Anchor Bolt
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the clips, and remove the rear quarter trim UPR.

  Fig 9: Identifying Rear Quarter Trim Clips (UPR)
  Courtesy of SUBARU OF AMERICA, INC.
3. Pull out the seat belt and remove the rear quarter trim UPR.
Release the clips and remove the trunk trim panel assembly - front on the left and right sides.

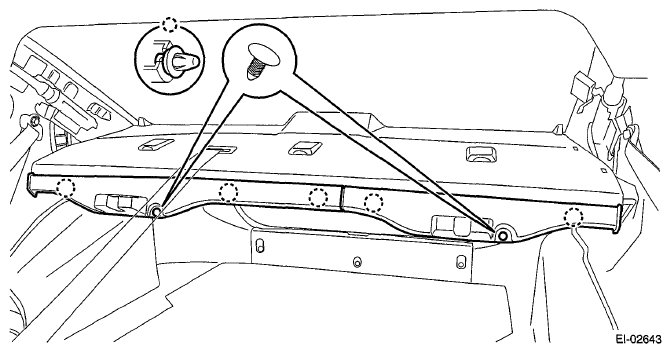

Fig 10: Identifying Trunk Trim Panel Assembly Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower anchor of the shoulder belt assembly CTR.
1. Remove the nuts and remove the ISO-FIX anchor.
2. Remove the bolts, and remove the lower anchor of shoulder belt assembly CTR.

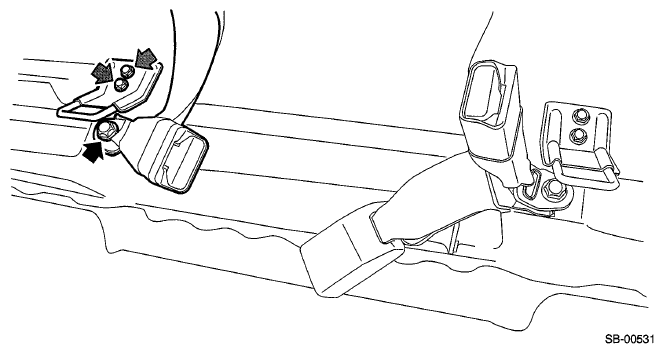

  Fig 11: Locating Lower Anchor Of Shoulder Belt Assembly Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Remove the rear shelf panel assembly.
1. Release the clips to float the rear shelf panel assembly.
2. Release the belt guide and guide the anchor of rear center seat belt to behind the shelf panel.
3. Disconnect the connector of high-mounted stop light.
4. Remove the rear shelf panel assembly.

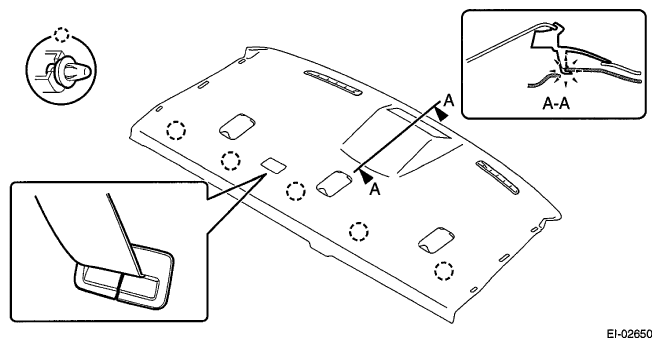

  Fig 12: Identifying Rear Shelf Panel Assembly Sections
  Courtesy of SUBARU OF AMERICA, INC.
