Cam Carrier LH

Insert the steel rods into ST, and set the engine so that the camshaft LH is facing up.
CAUTION:
- If the engine is standing on one side without inserting the steel rod into ST, engine may lose balance and fall down. Be sure to insert the steel rod into ST to extend the length.
- Use the steel rod with enough strength.
- Be careful not to pinch the engine harness with ST.
ST 499817100 ENGINE STAND

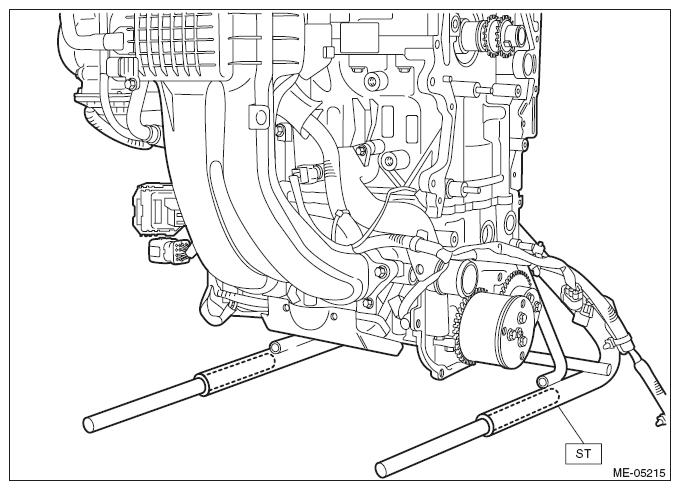

Fig 1: Inserting Steel Rods Into Engine Stand
Courtesy of SUBARU OF AMERICA, INC.

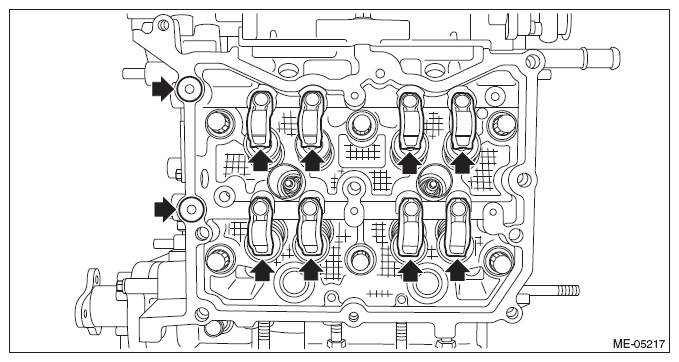

Apply engine oil to the valve shim and the roller rocker arm pivot, and install the valve shim and the roller rocker arm pivot to the cylinder head LH.

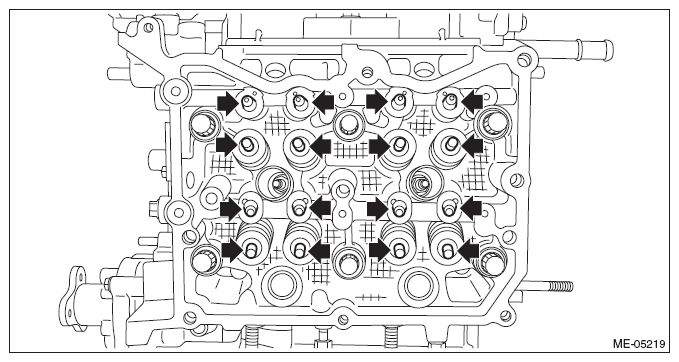

Fig 2: Locating Cylinder Head LH Valve Shims And Roller Rocker Arm Pivots
Courtesy of SUBARU OF AMERICA, INC.
Apply engine oil to the O-ring and the roller rocker arm, and install the O-ring and the roller rocker arm to the cylinder head LH.
NOTE: Use new O-rings.

Fig 3: Locating Cylinder Head LH O-Ring And Roller Rocker Arms
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the mating surface of cam carrier LH as shown in the figure.
NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the cylinder head LH and cam carrier LH.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. 0877Y0100) or equivalent

Liquid gasket applying diameter:

3.0±0.5 mm (0.1181±0.0197 in)

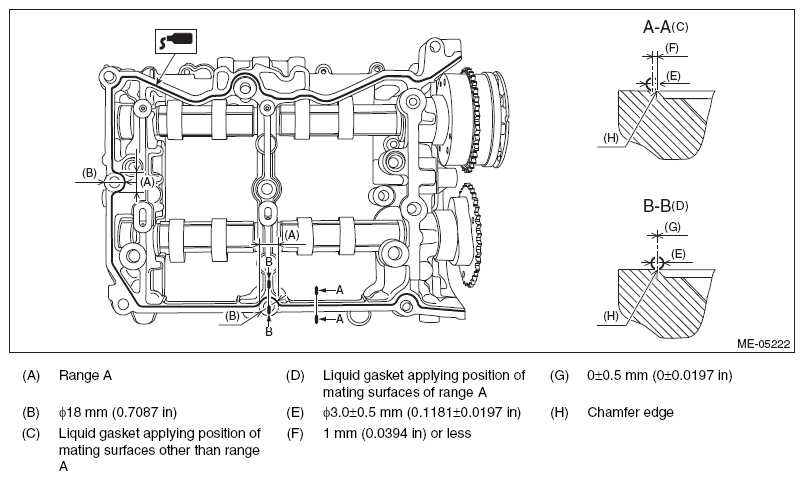

Fig 4: Identifying Liquid Gasket Applying Area On Mating Surface Of Cam Carrier LH
Courtesy of SUBARU OF AMERICA, INC.
Install the cam carrier LH to the cylinder head LH.
1. Mount the cam carrier LH, then tighten all bolts with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

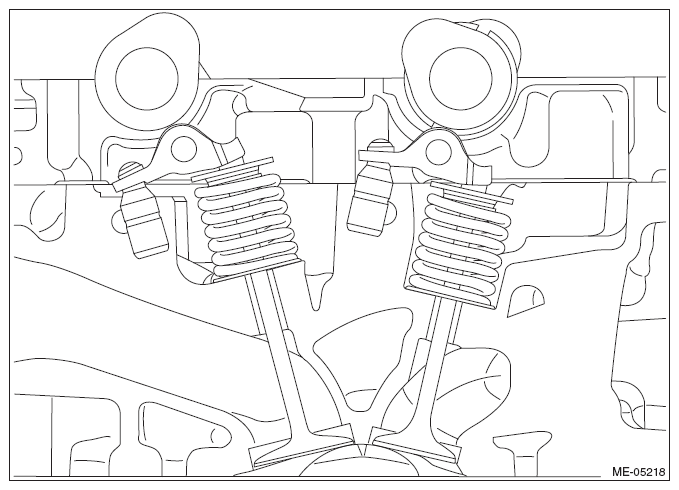

  NOTE: Set the intake camshaft LH and the exhaust camshaft LH to the zero-lift position.

  Fig 5: Identifying Intake And Exhaust Camshaft LH At Zero-Lift Position
  Courtesy of SUBARU OF AMERICA, INC.

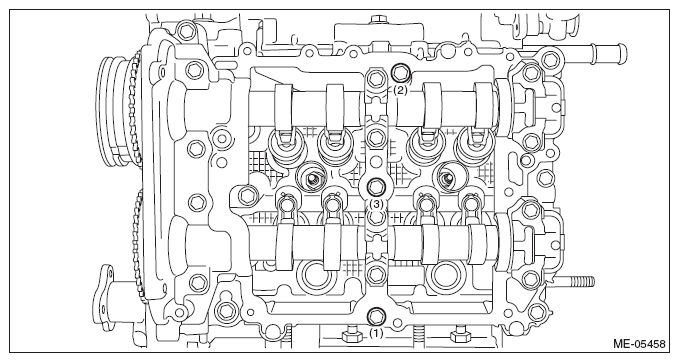

  Fig 6: Identifying Tightening Sequence Of Cam Carrier LH Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.

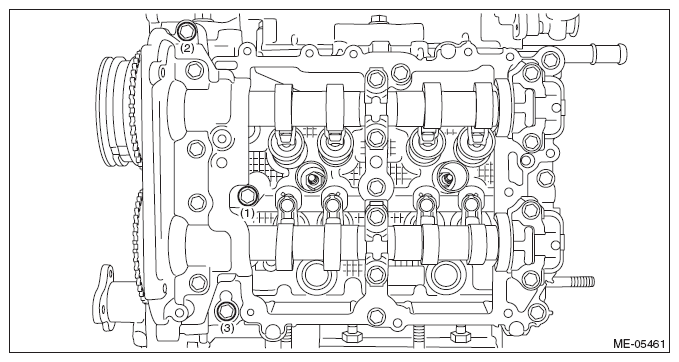

2. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.

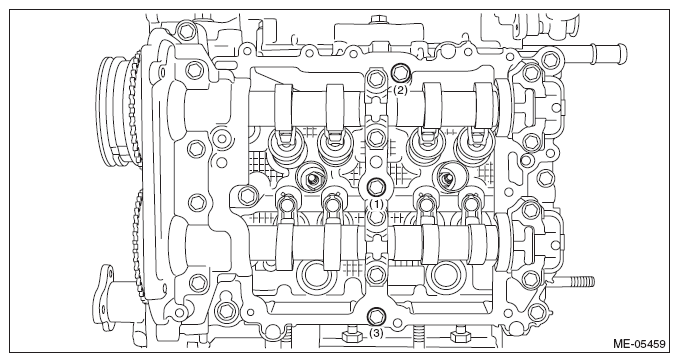

  Fig 7: Identifying Loosening Sequence Of Cam Carrier LH Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.

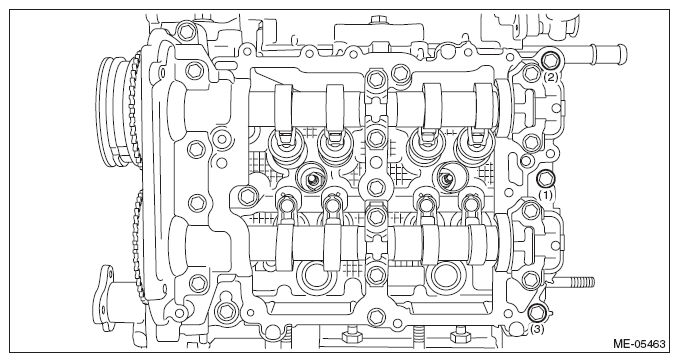

3. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

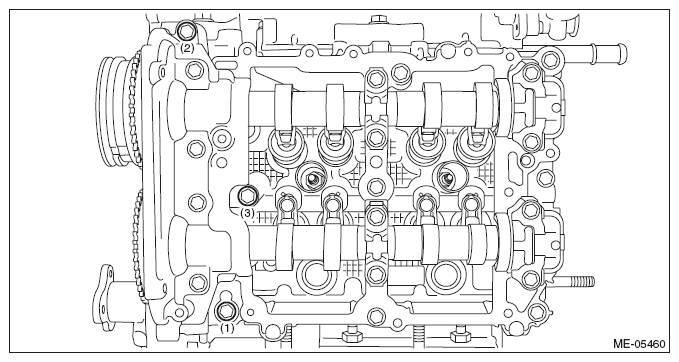

  Fig 8: Identifying Tightening Sequence Of Cam Carrier LH Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
4. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.

  Fig 9: Identifying Loosening Sequence Of Cam Carrier LH Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
5. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.

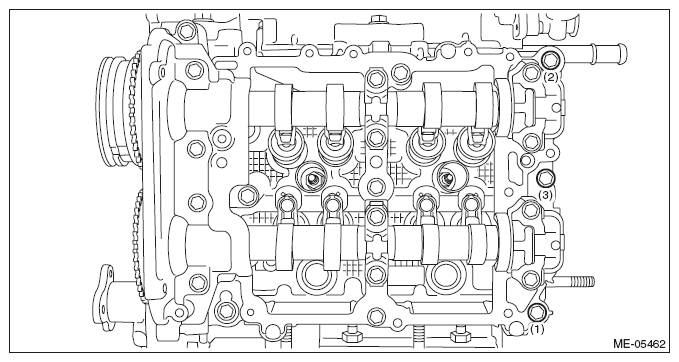

  Fig 10: Identifying Tightening Sequence Of Cam Carrier LH Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
6. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.

  Fig 11: Identifying Loosening Sequence Of Cam Carrier LH Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
7. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.
  NOTE: After tightening, if the liquid gasket is squeezed out onto the seal surface of the chain cover, completely remove any squeezed-out liquid gasket.

  Fig 12: Identifying Tightening Sequence Of Cam Carrier LH Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Set the part so that the intake manifold is on the upper side.
Install the cam sprocket LH. Refer to CAM SPROCKET LH .
NOTE: This procedure is required only when the cam carrier LH is removed for disassembly.
Check the cam clearance. Refer to WHEN TIMING CHAIN ASSEMBLY IS REMOVED .
Install timing chain LH. Refer to TIMING CHAIN LH .
Install the fuel pipe LH and the fuel injector LH.
1. Install the fuel pipe LH and the fuel injector LH, and install the bolts which secure the fuel pipe LH.
  NOTE: Use new O-rings, rubbers and seal rings.

  Tightening torque:

  6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  Fig 13: Locating Fuel Pipe LH Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect the quick connector to the fuel pipe LH.
  CAUTION:
  - Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
  - When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
  - When it is difficult to lock the slider, check that the pipe is fully inserted.
  - Make sure that the quick connector is securely connected.

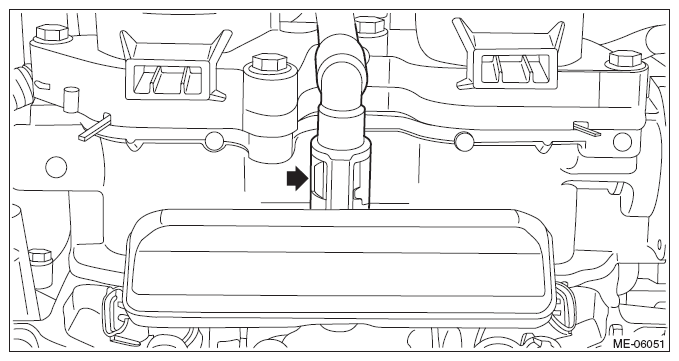

  NOTE: Connect the quick connector as shown in the figure.

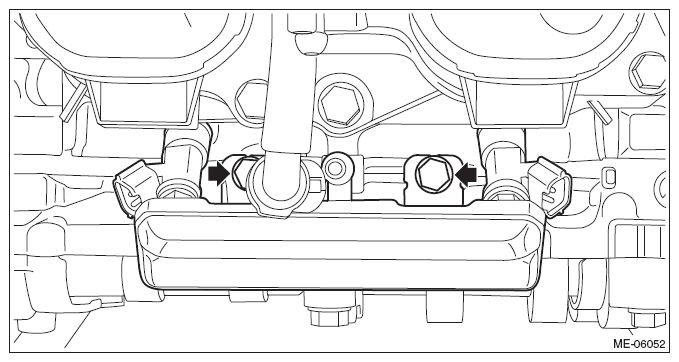

  Fig 14: Connecting Quick Connector To Fuel Pipe LH
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 15: Locating Quick Connector
  Courtesy of SUBARU OF AMERICA, INC.

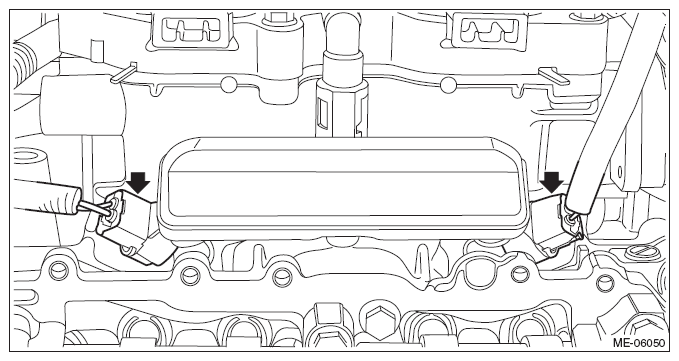

3. Connect the connectors to the fuel injector LH.

  Fig 16: Locating Fuel Injector LH Connectors
  Courtesy of SUBARU OF AMERICA, INC.

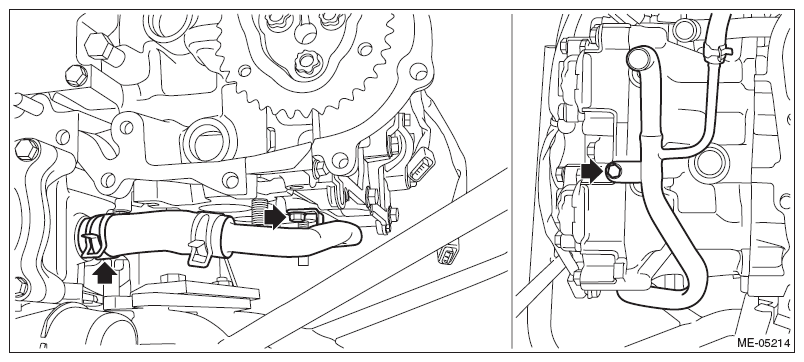

Connect the water pipe hose to oil pan upper, and install the water pipe assembly.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 17: Locating Water Pipe Hose To Oil Pan Upper Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

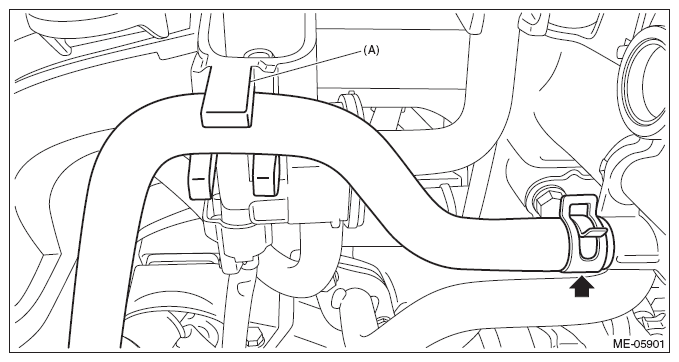

Connect the preheater hose to throttle body and install the preheater hose to intake manifold clip (A).

Fig 18: Locating Preheater Hose Mounting Clip
Courtesy of SUBARU OF AMERICA, INC.

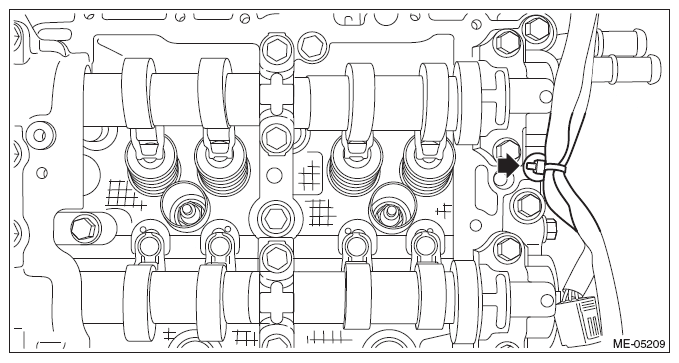

Secure the engine harness to the cam carrier LH with a clip.

Fig 19: Locating Cam Carrier LH Engine Harness Mounting Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the rocker cover LH. Refer to ROCKER COVER LH .
Install the chain cover. Refer to INSTALLATION .
Install the engine to the vehicle. Refer to INSTALLATION .
