Cam Sprocket LH

Install the intake cam sprocket LH by aligning the knock hole (A) of intake cam sprocket LH and the knock pin (B) of intake camshaft LH.
NOTE: Before installation, check that there is no foreign matter on the intake cam sprocket LH and intake camshaft LH.

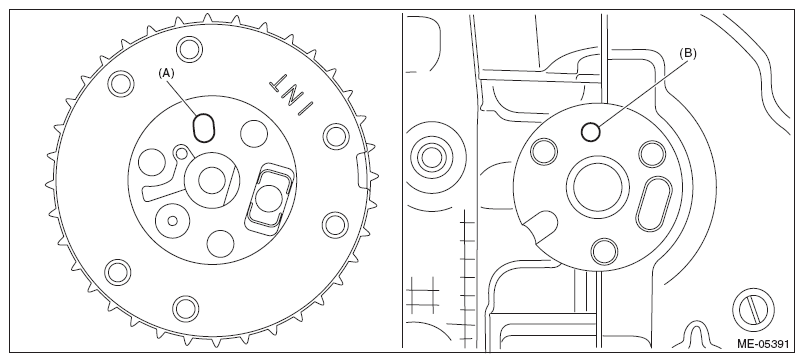

Fig 1: Identifying Intake Cam Sprocket LH Knock Hole And Knock Pin
Courtesy of SUBARU OF AMERICA, INC.
Hold the intake cam sprocket LH using the ST1 and ST2, and install the bolts using the ST3.
ST1 18355AA000 PULLEY WRENCH

ST2 18334AA030 PULLEY WRENCH PIN SET

ST3 18270KA010 SOCKET

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

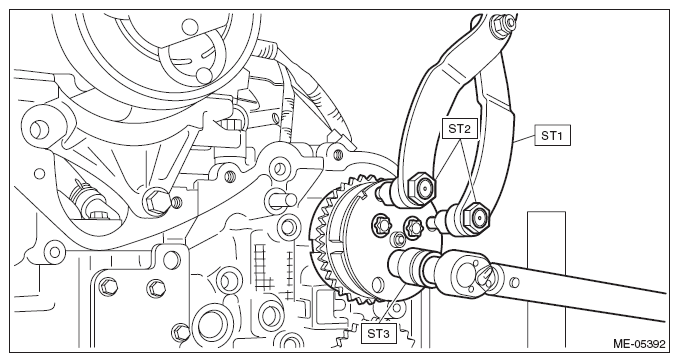

Fig 2: Installing Intake Cam Sprocket LH Mounting Bolt Using Tools
Courtesy of SUBARU OF AMERICA, INC.
Install timing chain LH. Refer to TIMING CHAIN LH .
Install the chain cover. Refer to INSTALLATION .

Install the exhaust cam sprocket LH by aligning the knock hole (A) of exhaust cam sprocket LH and the knock pin (B) of exhaust camshaft LH.
NOTE: Before installation, check that there is no foreign matter on the exhaust cam sprocket LH and exhaust camshaft LH.

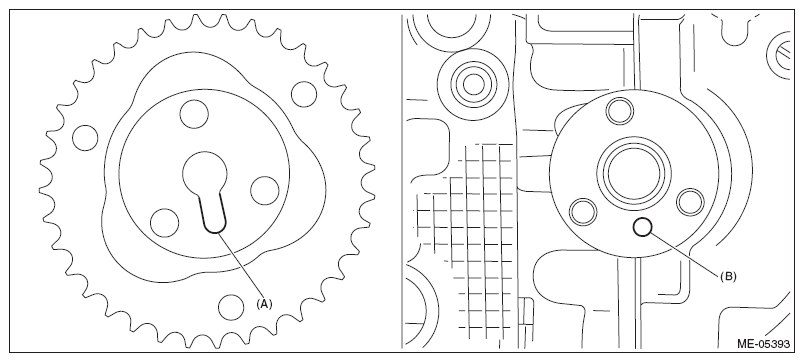

Fig 3: Identifying Exhaust Cam Sprocket LH Knock Hole And Knock Pin
Courtesy of SUBARU OF AMERICA, INC.
Hold the exhaust cam sprocket LH using the ST1 and ST2, and install the bolts using the ST3.
ST1 18355AA000 PULLEY WRENCH

ST2 18334AA020 PULLEY WRENCH PIN SET

ST3 18270KA010 SOCKET

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

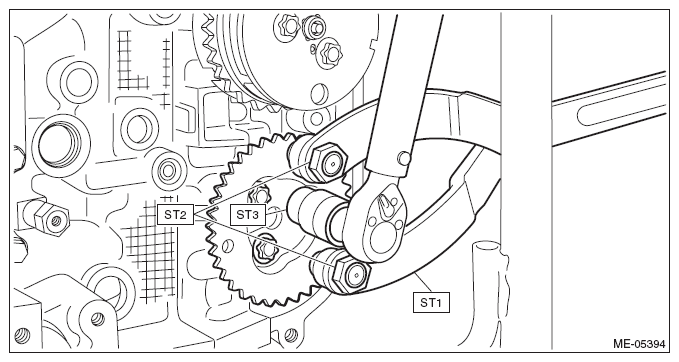

Fig 4: Installing Exhaust Cam Sprocket LH Mounting Bolt Using Tools
Courtesy of SUBARU OF AMERICA, INC.
Install timing chain LH. Refer to TIMING CHAIN LH .
Install the chain cover. Refer to INSTALLATION .
