Oil Pan Upper

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine from the vehicle. < Refer to REMOVAL , Engine Assembly. >
  2. Remove the water pump. < Refer to REMOVAL , Water Pump. >
  3. Remove the thermostat cover. < Refer to REMOVAL , Thermostat. >
  4. Remove the water pipe assembly. < Refer to WATER PUMP , COMPONENT, General Description. >
  5. Remove the oil pan. < Refer to OIL PAN , REMOVAL, Oil Pan and Strainer. >
  6. Remove the bolts which secure oil pan upper to cylinder block, and remove the oil pan upper.

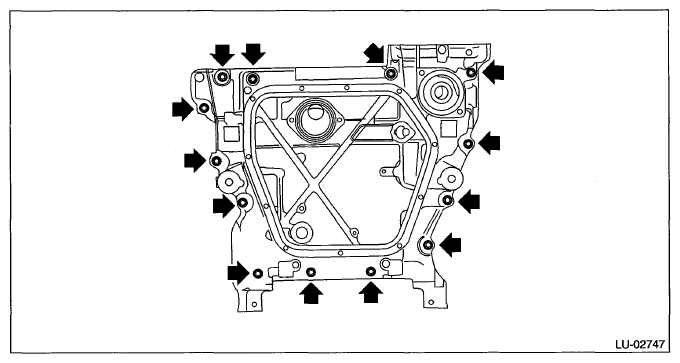

    Fig 1: Identifying Oil Pan Upper To Cylinder Block Mounting Bolts
    G07665073Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the baffle plate from the oil pan upper.
  8. Remove the oil strainer from the oil pan upper.
  9. Remove stud bolts from the oil pan upper.

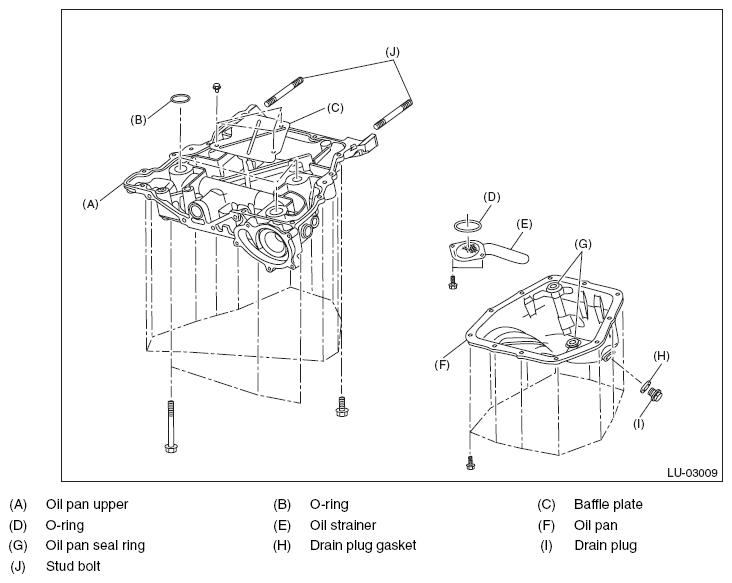

    Fig 2: Identifying Oil Pan Upper And Related Components
    G08570231Courtesy of SUBARU OF AMERICA, INC.
