Section 6 (Engine Cooling System (H4DO)): Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. < Refer to REMOVAL , Front Under Cover. >
Drain engine coolant. < Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Remove the front exhaust pipe. < Refer to REMOVAL , Front Exhaust Pipe. >
Disconnect the radiator outlet hose from thermostat cover.

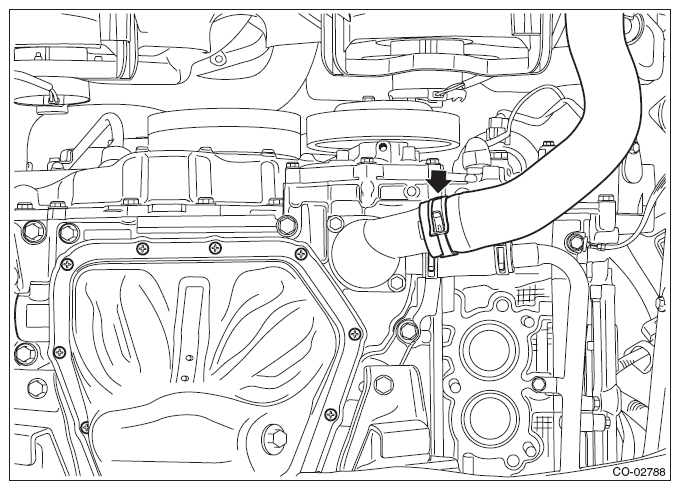

Fig 2: Locating Radiator Outlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the thermostat cover, and then remove the gasket and thermostat.

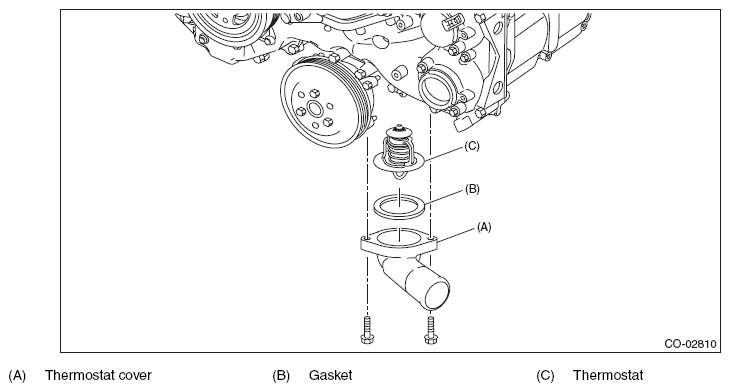

Fig 3: Identifying Thermostat Cover, Gasket And Thermostat
Courtesy of SUBARU OF AMERICA, INC.
