Timing Chain RH

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Be careful that the foreign matter is not into or onto the assembled component during installation.
  • Apply engine oil to all component parts of the timing chain.
  1. Install timing chain LH. < Refer to TIMING CHAIN LH , INSTALLATION, Timing Chain Assembly. >
  2. Prepare to attach the chain tensioner RH.
    1. Move the link plate (A) in the direction of arrow to press in the plunger (B).
      Fig 1: Pressing Link Plate Plunger
      G08316951Courtesy of SUBARU OF AMERICA, INC.
    2. With a 2.5 mm (0.98 in) dia. stopper pin or a 2.5 mm (0.98 in) (nominal) dia. hex wrench inserted into the stopper pin hole, secure the plunger.
      NOTE: If the stopper pin hole on the link plate and the stopper pin hole on the chain tensioner are not aligned, check that the first notch of plunger rack (A) is engaged with the stopper tooth (B). If not engaged, retract the plunger a little so that the first notch of plunger rack (A) is engaged with the stopper tooth (B).
      Fig 2: Inserting Hex Wrench Into Stopper Pin Hole
      G08316952Courtesy of SUBARU OF AMERICA, INC.
  3. Using ST and by turning the crankshaft, align the alignment marks of crank sprocket, intake cam sprocket LH and exhaust cam sprocket LH to the positions as shown in the figure.
    NOTE: If the alignment marks are aligned to the positions as shown in the figure, the crankshaft key is located at six o'clock position.

    ST 18252AA000 CRANKSHAFT SOCKET

    Fig 3: Aligning Alignment Marks Of Crank Sprocket, Intake Cam Sprocket LH And Exhaust Cam Sprocket LH Using Crankshaft Socket
    G08562979Courtesy of SUBARU OF AMERICA, INC.
  4. Align the alignment marks of intake cam sprocket RH and exhaust cam sprocket RH to the positions as shown in the figure.
    CAUTION: To prevent valve damage, turn the intake cam sprocket RH and exhaust cam sprocket RH only within the range of zero-lift (in range where it can be turned lightly by hand).
    Fig 4: Identifying Alignment Marks On Intake And Exhaust Cam Sprocket RH
    G08562980Courtesy of SUBARU OF AMERICA, INC.
  5. Install the timing chain RH and the timing chain guide RH.
    1. Match the timing chain mark (yellow) to the alignment mark of the crank sprocket.
    2. Match the timing chain mark (orange) to the timing mark position of the intake cam sprocket RH.
    3. Match the timing chain mark (orange) to the timing mark position of the exhaust cam sprocket RH.
    4. Install the timing chain guide RH.

      Tightening torque:

      6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

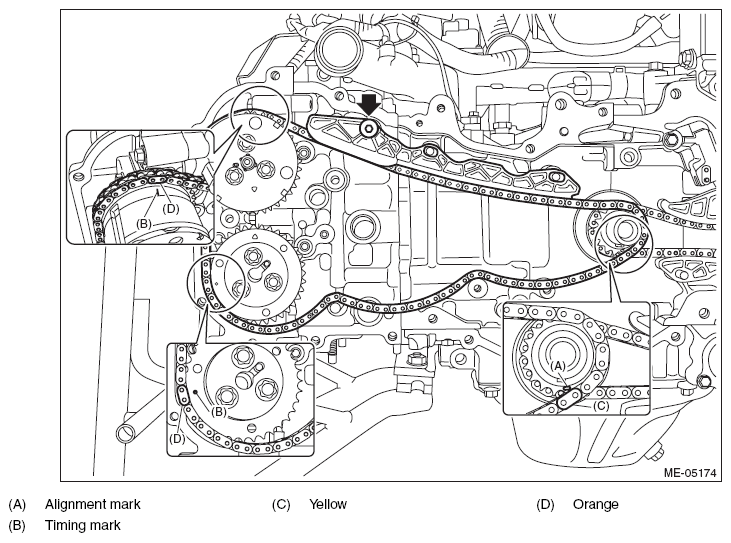

      Fig 5: Locating Timing Chain Guide RH
      G08562981Courtesy of SUBARU OF AMERICA, INC.
  6. Install the chain tensioner lever RH (A) and chain tensioner RH.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    Fig 6: Locating Chain Tensioner RH And Chain Tensioner Lever RH Bolts
    G08562968Courtesy of SUBARU OF AMERICA, INC.
  7. Pull out the stopper pin from the chain tensioner RH.
    CAUTION: Confirm the following before pulling out the stopper pin.
    • Matching of the timing chain mark (yellow) to the alignment mark of the crank sprocket.
    • Matching of the timing chain mark (orange) to the timing mark position of the intake cam sprocket RH.
    • Matching of the timing chain mark (orange) to the timing mark position of the exhaust cam sprocket RH.

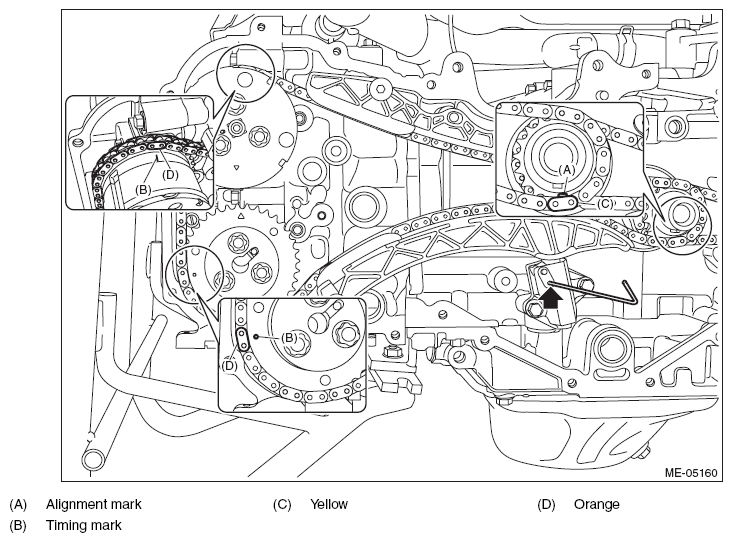

      Fig 7: Pulling Out Stopper Pin From Chain Tensioner RH
      G08562983Courtesy of SUBARU OF AMERICA, INC.
  8. Using the ST, turn the crankshaft clockwise, and make sure that there are no abnormal conditions.
    CAUTION: Always make sure to perform this confirmation.

    ST 18252AA000 CRANKSHAFT SOCKET

    Fig 8: Turning Crankshaft Clockwise Using Crankshaft Socket
    G08562984Courtesy of SUBARU OF AMERICA, INC.
  9. Install the chain cover. < Refer to INSTALLATION , Chain Cover. >
