Cam Sprocket RH

WARNING: This page is about a different variant/trim than selected.

Intake cam sprocket RH
1. Install the intake cam sprocket RH by aligning the knock hole (A) of intake cam sprocket RH and the knock pin (B) of intake camshaft RH.
  NOTE: Before installation, check that there is no foreign matter on the intake cam sprocket RH and intake camshaft RH.

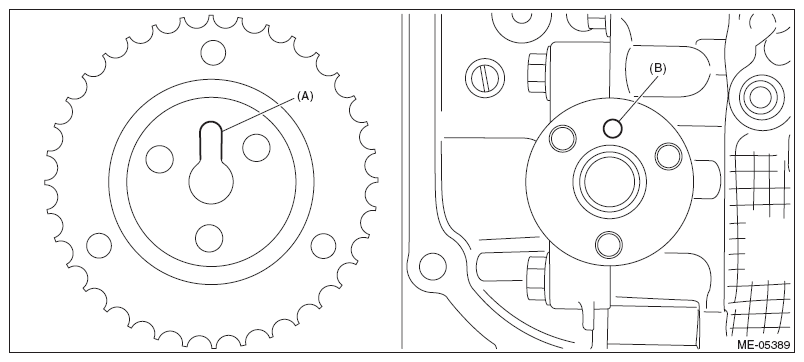

  Fig 1: Identifying Intake Cam Sprocket RH Knock Hole And Knock Pin
  Courtesy of SUBARU OF AMERICA, INC.
2. Hold the intake cam sprocket RH using the ST1 and ST2, and install the bolts using the ST3.
  ST1 18355AA000 PULLEY WRENCH

  ST2 18334AA030 PULLEY WRENCH PIN SET

  ST3 18270KA010 SOCKET

  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)

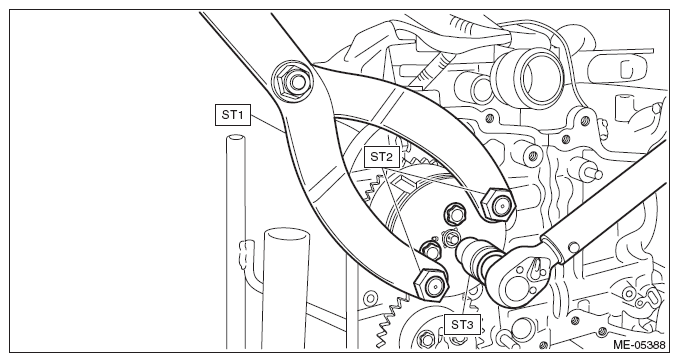

  Fig 2: Installing Intake Cam Sprocket RH Mounting Bolt Using Tools
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the timing chain RH. < Refer to TIMING CHAIN RH , INSTALLATION, Timing Chain Assembly. >
4. Install the chain cover. < Refer to INSTALLATION , Chain Cover. >
Exhaust cam sprocket RH
1. Install the exhaust cam sprocket RH by aligning the knock hole (A) of exhaust cam sprocket RH and the knock pin (B) of exhaust camshaft RH.
  NOTE: Before installation, check that there is no foreign matter on the exhaust cam sprocket RH and exhaust camshaft RH.

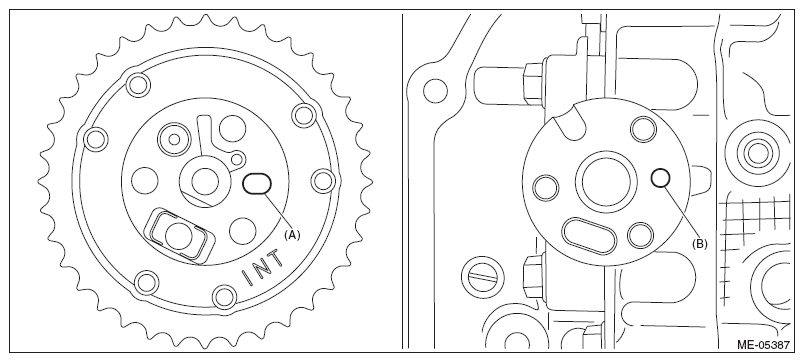

  Fig 3: Identifying Exhaust Cam Sprocket RH Knock Hole And Knock Pin
  Courtesy of SUBARU OF AMERICA, INC.
2. Hold the exhaust cam sprocket RH by inserting the 6 mm (0.236 in) dia. steel rod into the exhaust cam sprocket RH hole as shown in the figure, and install the bolts using the ST.
  ST 18270KA010 SOCKET

  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)

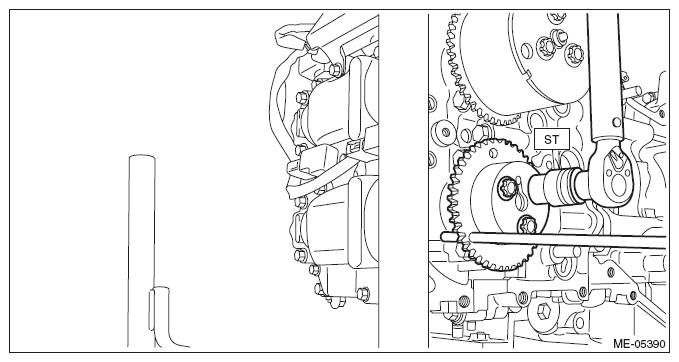

  Fig 4: Inserting Steel Rod Into Exhaust Cam Sprocket RH Hole
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the timing chain RH. < Refer to TIMING CHAIN RH , INSTALLATION, Timing Chain Assembly. >
4. Install the chain cover. < Refer to INSTALLATION , Chain Cover. >
