Abnormal Yaw Rate Sensor Output

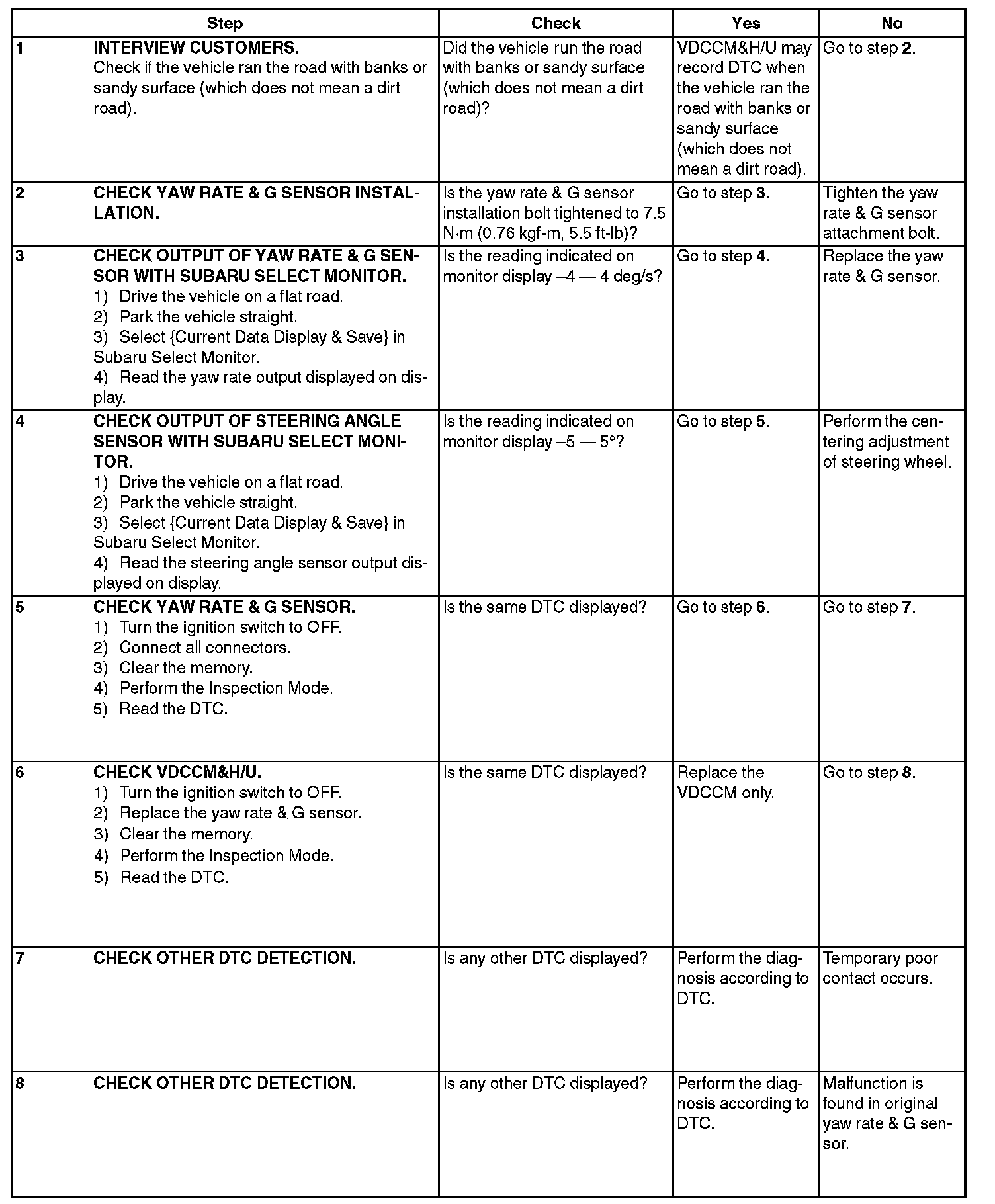

DTC C0072 ABNORMAL YAW RATE SENSOR OUTPUT

DTC DETECTING CONDITION:
Defective yaw rate sensor

TROUBLE SYMPTOM:
VDC does not operate.

WIRING DIAGRAM:
