Home >> Subaru >> 2012 >> Forester F4-2.5L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0056

C0056

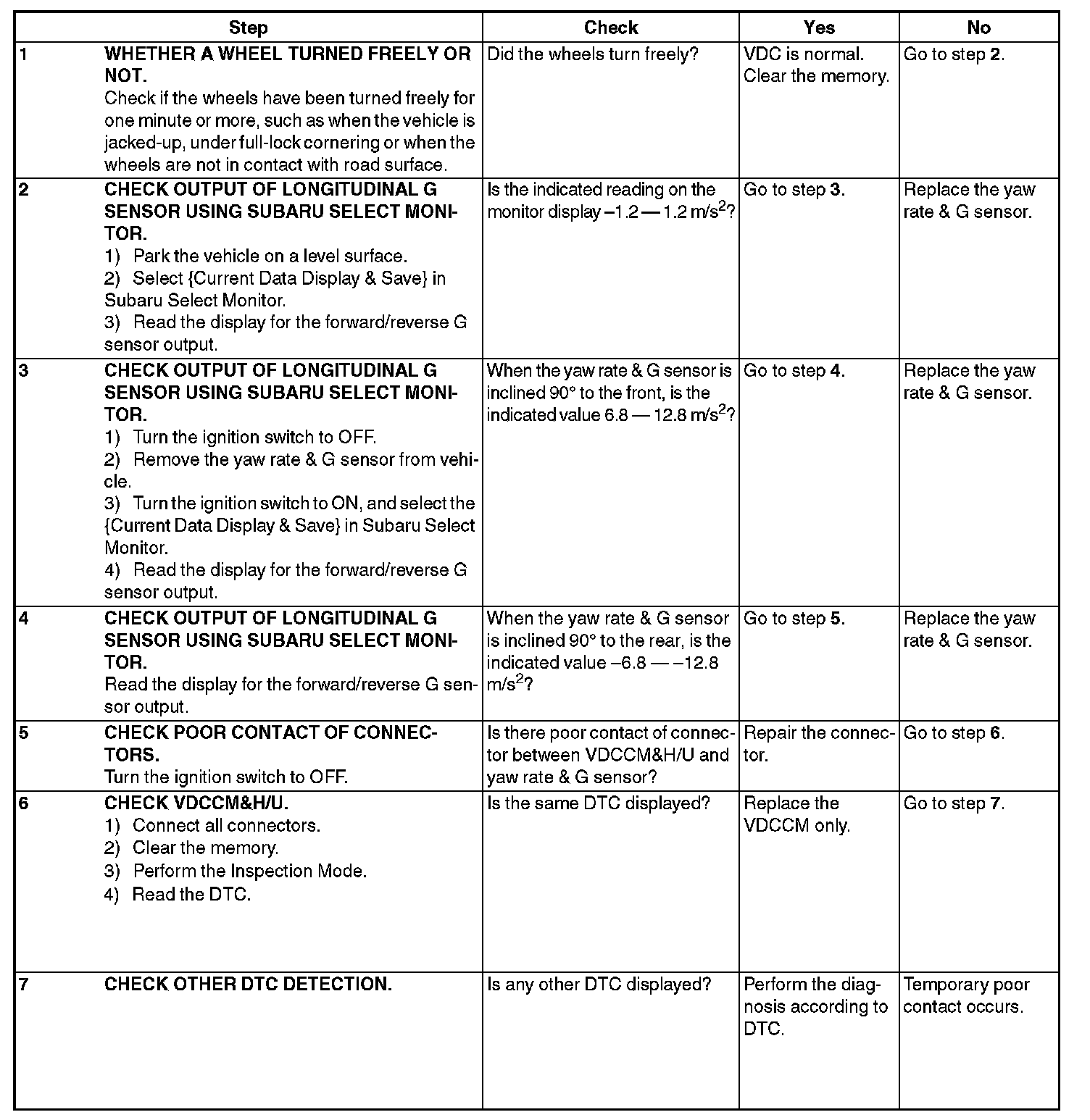

DTC C0056 G SENSOR SIGNAL

DTC DETECTING CONDITION:
Defective longitudinal G sensor

TROUBLE SYMPTOM:
Hill start assist does not operate.

WIRING DIAGRAM:
