BLS Circuit Open

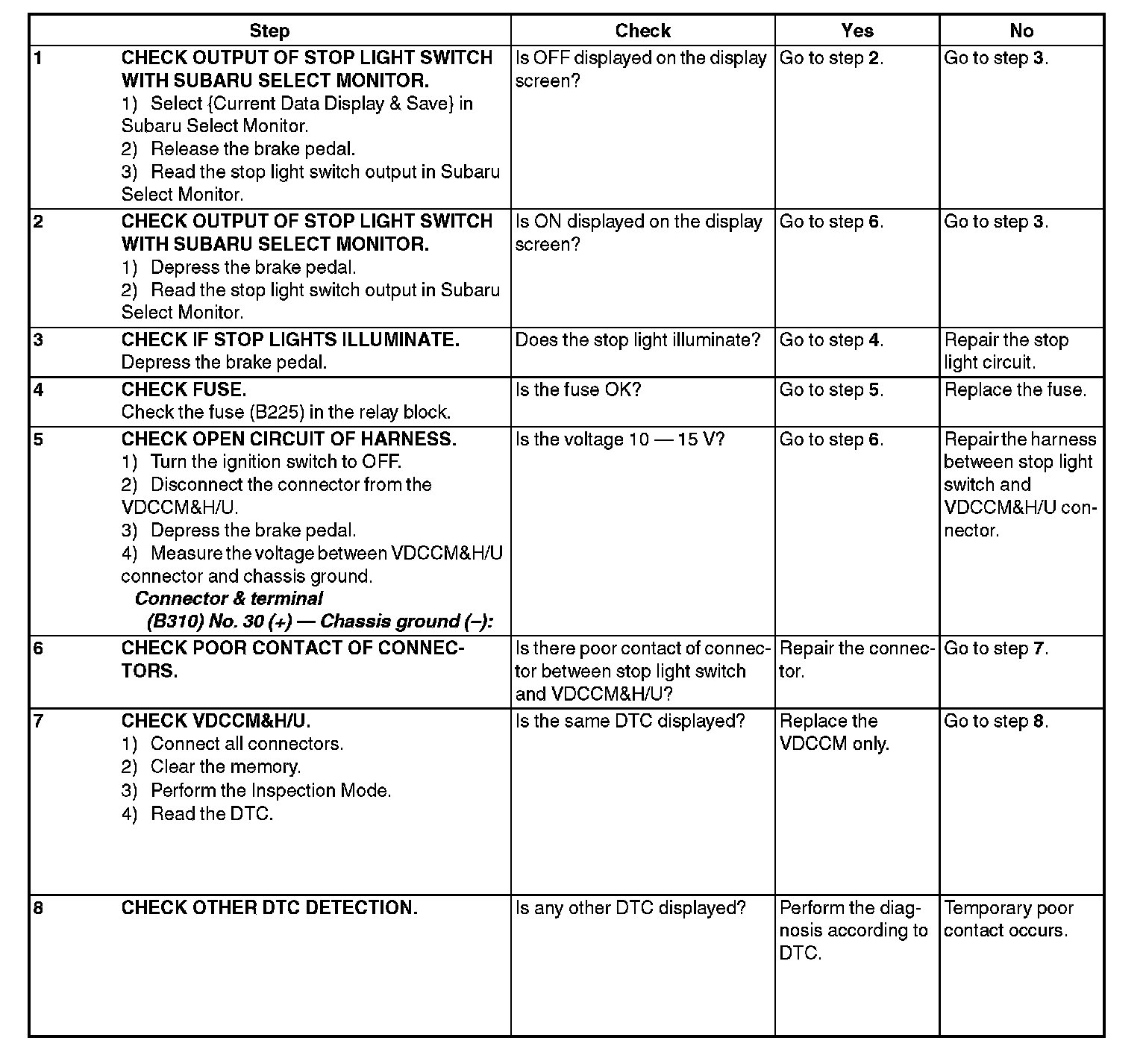

DTC C0054 BLS CIRCUIT OPEN

DTC DETECTING CONDITION:
Defective stop light switch

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

WIRING DIAGRAM:
