Home >> Subaru >> 2012 >> Forester F4-2.5L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0041 >> ECM

ECM

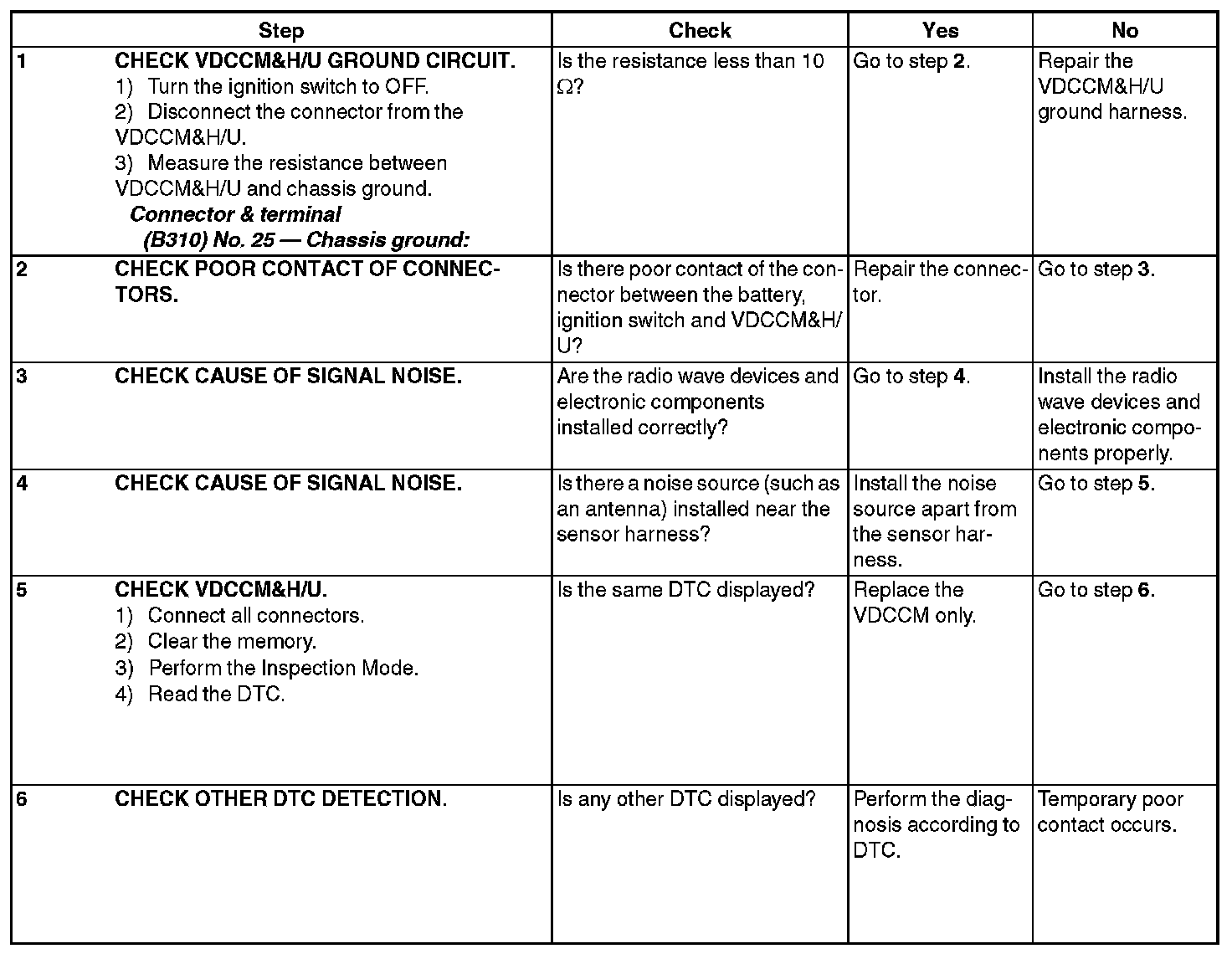

DTC C0041 ECM

DTC DETECTING CONDITION:
Defective VDCCM&H/U

TROUBLE SYMPTOM:
^ ABS does not operate.
^ EBD does not operate.
^ VDC does not operate.

WIRING DIAGRAM:
