C0029

DTC C0029 ANY OF WHEEL SENSORS SIGNAL

DTC DETECTING CONDITION:
^ Defective ABS wheel speed sensor signal (noise, irregular signal, etc.)
^ Defective magnetic encoder
^ When a wheel is turned freely for a long time

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.
^ EBD may not operate.

NOTE:
Brake warning light comes on as well as ABS warning light when EBD does not operate.

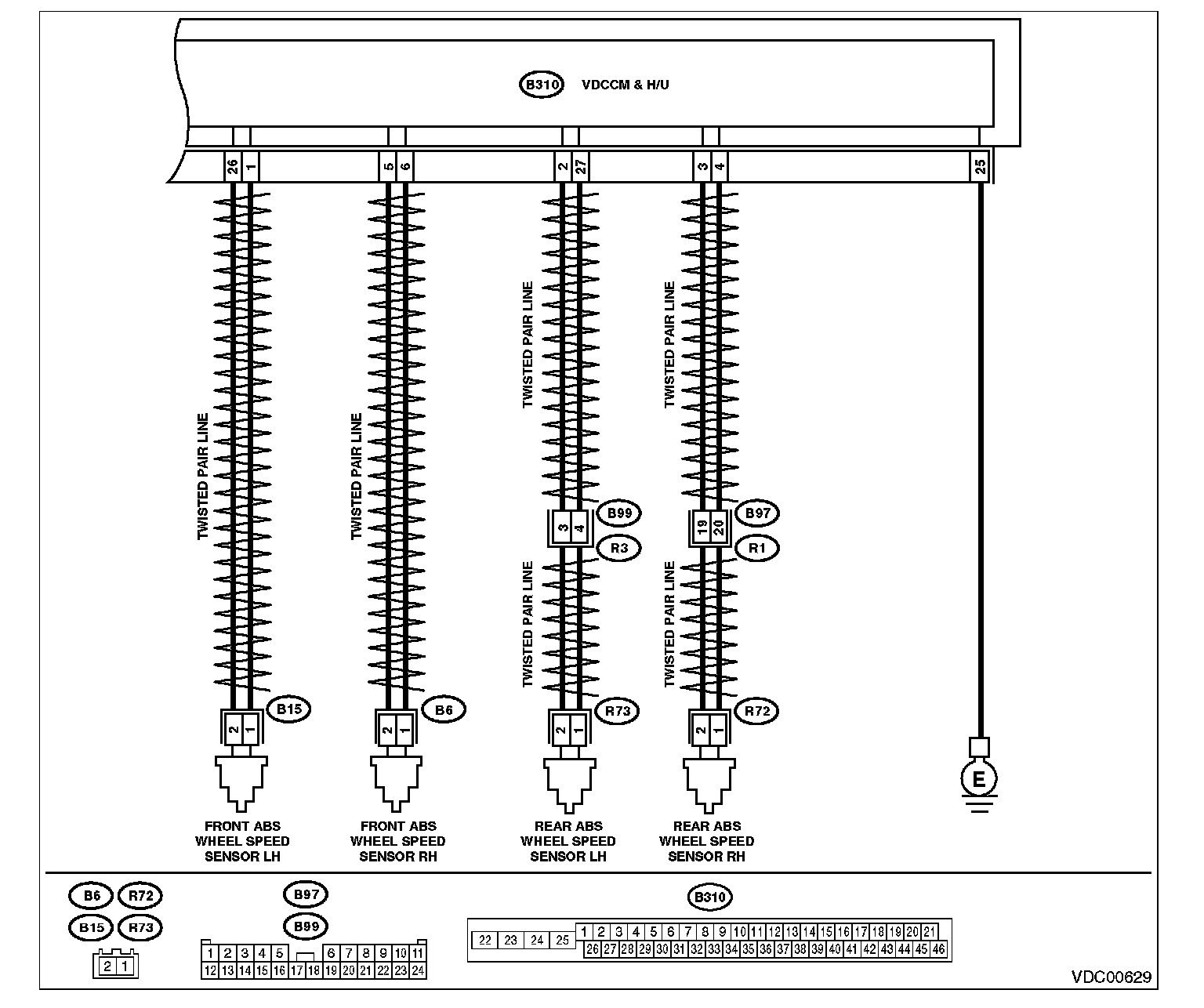

WIRING DIAGRAM:
