Radiator Main Fan and Fan Motor: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

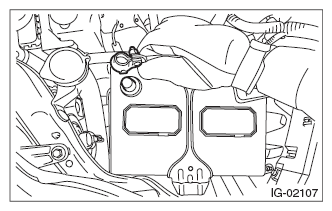

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the reservoir tank. Refer to , REMOVAL , Reservoir Tank.
Disconnect the main fan motor connector (A).

Fig 2: Identifying Main Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts that secure the radiator main fan motor assembly.

Fig 3: Locating Radiator Main Fan Motor Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator main fan motor assembly from the upper side of the vehicle.
