Reservoir Tank: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Pull out the over flow hose (A).
  2. Pull out the reservoir tank to the arrow direction while pushing the claw (B).

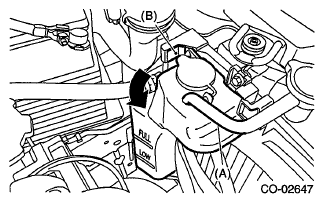

    Fig 1: Pulling Out Reservoir Tank In Arrow Direction
    G06649643Courtesy of SUBARU OF AMERICA, INC.
