Work On The Vehicle

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.

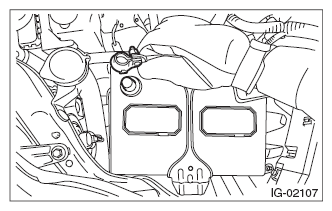

Disconnect the ground cable from battery.

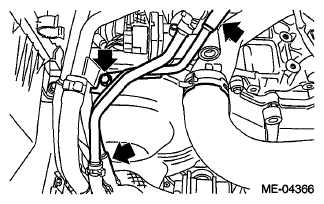

Fig 1: Locating Intake Duct Clamp Bolt
Courtesy of SUBARU OF AMERICA, INC.
When removing the timing belt cover RH
1. Remove the air intake duct. Refer to AIR INTAKE DUCT .
2. Loosen the clamp which holds the intake duct to intercooler.

  Fig 2: Locating Suction Hose Clamp
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the V-belts. Refer to , REMOVAL , V-belt.
4. Remove the generator. Refer to GENERATOR .
5. Remove the suction hose from intake duct.

  Fig 3: Locating Power Steering Pump Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
6. Disconnect the connector (A) from power steering pump, and remove the power steering pump together with the power steering pump bracket from engine and rod stopper.

  Fig 4: Locating Intake Duct Clamping Bolt
  Courtesy of SUBARU OF AMERICA, INC.
7. Mount the power steering pump together with the power steering pump bracket on RH side wheel apron.
8. Remove the radiator sub fan motor assembly. Refer to RADIATOR SUB FAN AND FAN MOTOR .
9. Remove the engine coolant hose from the clip (A).
10. Remove the bolts which secure the intake duct to the turbocharger, and remove the air bypass valve from the intake duct.

  Fig 5: Locating Intake Duct Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
11. Remove the intake duct from intake manifold.

  Fig 6: Locating Blow-By Pipe Clamping Bolt And Vacuum Hose
  Courtesy of SUBARU OF AMERICA, INC.
12. Disconnect the vacuum hose from blow-by pipe, and remove the bolt securing the blow-by pipe from the intake manifold protector RH.

  Fig 7: Locating Vacuum Hose
  Courtesy of SUBARU OF AMERICA, INC.
13. Disconnect the vacuum hose from PCV pipe.

  Fig 8: Identifying Vacuum Hose (B), Vacuum Hose (C), Vacuum Hose (D), Vacuum Hose (E) Amd Clip (A)
  Courtesy of SUBARU OF AMERICA, INC.
14. Remove vacuum hose (B), vacuum hose (C), vacuum hose (D) and vacuum hose (E) from the clip (A).

  Fig 9: Locating Engine Harness Clip
  Courtesy of SUBARU OF AMERICA, INC.
15. Remove the bolts which secure the upper side of the timing belt cover RH.
16. Lift up the vehicle.
17. Remove the under cover. Refer to FRONT UNDER COVER .
18. Remove the air by-pass valve. Refer to AIR BY-PASS VALVE .
19. Remove the clip holding the engine harness.

  Fig 10: Locating Front Oxygen (A/F) Sensor And Rear Oxygen Sensor Connectors
  Courtesy of SUBARU OF AMERICA, INC.
20. Loosen the remaining bolts which secure timing belt cover RH, and remove the timing belt cover RH together with the hose clip stay assembly.
When removing the timing belt cover LH
1. Disconnect the connectors from front oxygen (A/F) sensor and rear oxygen sensor, and remove the clip (A) securing the front oxygen (A/F) sensor harness and rear oxygen sensor harness.

  Fig 11: Locating Stopper Rod Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the bolts which secure the upper side of the timing belt cover LH.
3. Lift up the vehicle.
4. Remove the under cover. Refer to FRONT UNDER COVER .
5. Loosen the remaining bolts which secure timing belt cover LH, and remove the timing belt cover LH together with the oxygen sensor bracket.
When removing the front timing belt cover
1. Remove the stopper rod.

  Fig 12: Identifying Front Timing Belt Cover
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the crank pulley. Refer to , REMOVAL , Crank Pulley.
3. Remove the timing belt cover RH and timing belt cover LH. Refer to step 3) and step 4) for removal procedures.
4. Remove the bolts securing the front timing belt cover, and remove the front timing belt cover.

  Fig 13: Locating Blow-By Pipe Clamping Bolt
  Courtesy of SUBARU OF AMERICA, INC.
