Draining Fuel (With SUBARU Select Monitor)

WARNING: This page is about a different car, the 2010 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION: Be careful not to spill fuel.

NOTE:

If the fuel pump cannot be driven, refer to the procedures for draining from the fuel filler hose. Ref. to DRAINING FUEL (THROUGH THE FUEL FILLER HOSE) , PROCEDURE, Fuel.
Be careful not to let the battery run-out.

Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Attach ST to the fuel delivery pipe and push ST in the direction of arrow mark to disconnect the fuel delivery hose.
ST 42099AE000 QUICK CONNECTOR RELEASE
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.

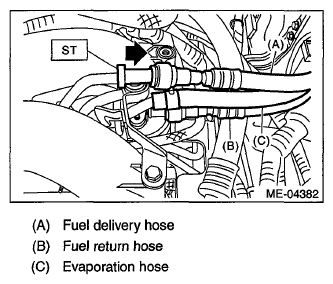

  Fig 1: Attaching ST To Fuel Delivery Pipe
  Courtesy of SUBARU OF AMERICA, INC.
Connect ST to the fuel delivery hose.
ST 18471AA000 FUEL PIPE ADAPTER
Connect the gasoline proof hose to ST and put the end of the hose in the container.
Drive the fuel pump and drain the fuel using Subaru Select Monitor. (Refer to PC application help for Subaru Select Monitor.)
CAUTION: Be careful not to spill fuel.
Install the related parts in the reverse order after draining the fuel.
