Air Intake Boot: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

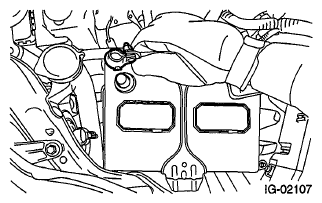

Fig 1: Identifying Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. Ref. IN(H4DOTC)-12, REMOVAL, Air Intake Duct.
Remove the air cleaner case. Ref. IN(H4DOTC)-8, REMOVAL, Air Cleaner Case.
Lift up the vehicle.
Remove the under cover. Ref. to REMOVAL , Front Under Cover.
Remove the intake duct from the air intake boot.

Fig 2: Locating Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the nuts which secure the air intake boot to the vehicle, and remove the air intake boot from the upper side of the vehicle.

Fig 3: Locating Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
