Fuel Pump Relay: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the glove box lid assembly. Ref. to REMOVAL , Glove Box.
  3. Remove the fuel pump relay.

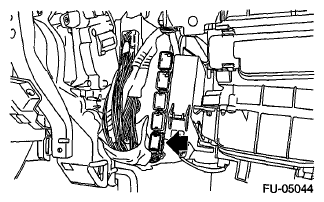

    Fig 1: Locating Fuel Pump Relay
    G06651303Courtesy of SUBARU OF AMERICA, INC.
