Glove Box: Removal

Remove the glove box lid assembly.
1. Remove the glove box damper.
2. Release the stoppers and remove the glove box lid assembly by pulling it toward you.

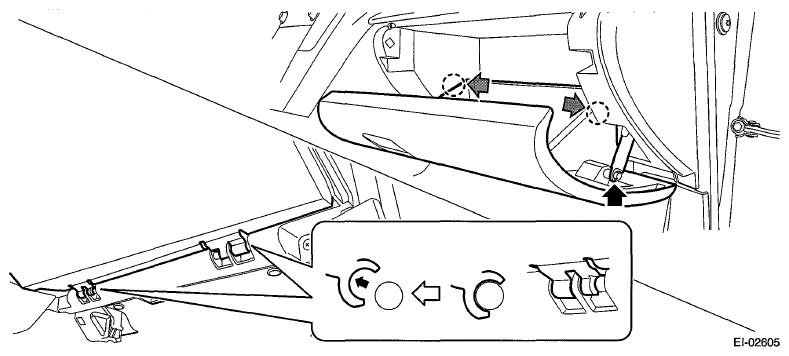

  Fig 1: Locating Glove Box Lid Assembly Stoppers
  Courtesy of SUBARU OF AMERICA, INC.
Release the clips, and remove the instrument panel side cover RH.

Fig 2: Identifying Instrument Panel Side Cover Clips RH
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box back panel.
1. Release the clips, and remove the glove box under cover.

  Fig 3: Identifying Glove Box Under Cover Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the clips and claws, and remove the ornament panel assembly P.

  Fig 4: Identifying Clips And Claws Of Ornament Panel Assembly P
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the screws and release the claws, then detach the glove box back panel.

  Fig 5: Locating Glove Box Back Panel Screws And Claws
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect the glove box light LED connector.
