Rear Oxygen Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

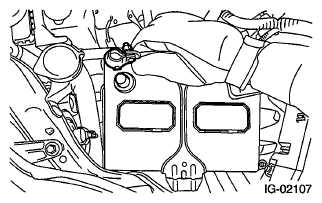

Fig 1: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator main fan motor assembly. Ref. to REMOVAL , Radiator Sub Fan and Fan Motor.
Disconnect the connector from the rear oxygen sensor, and remove the clip (A) holding the rear oxygen sensor harness.

Fig 2: Locating Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Apply spray-type lubricant to the threaded portion of rear oxygen sensor, and leave it for one minute or more.
Remove the rear oxygen (A/F) sensor by using a sensor socket.
CAUTION: When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.

Fig 3: Locating Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
